Step1: Product

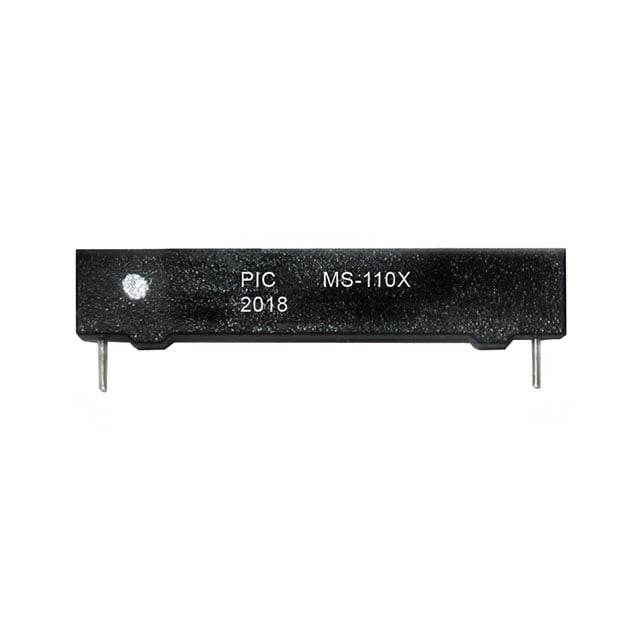

PIC GmbH MS-110X
Image shown is a representation only
Manufacturer
Manufacturer No
MS-110X
Packaging
Bulk
Description
SWITCH REED LATCHING 500MA 100V
Detailed Description
Molded Body Reed Switch SPST-NO, Latching Operate Range 5W 500mA (AC/DC) 100 V Through Hole
DataSheet
Type
Molded Body Reed
Circuit
SPST-NO, Latching
Packaging
Bulk
Part Status
Active
Size - Body
1.125" L x 0.150" W x 0.225" H (28.58mm x 3.81mm x 5.72mm)
Manufacturer
PIC GmbH
Operate Time
1 ms
Release Time
0.4 ms
Mounting Type
Through Hole
Power - Rated
5W
Current - Carry
700mA (AC/DC)
Length - Overall
1.125" (28.58mm)
Termination Style
PC Pin
Height Above Board
0.225" (5.72mm)
Current - Switching
500mA (AC/DC)
Operating Temperature
-20°C ~ 85°C
Voltage - Switching AC
100 V
Voltage - Switching DC
140 V
| Attribute | Value |
|---|---|
| Type | Molded Body Reed |
| Circuit | SPST-NO, Latching |
| Packaging | Bulk |
| Part Status | Active |
| Size - Body | 1.125" L x 0.150" W x 0.225" H (28.58mm x 3.81mm x 5.72mm) |
| Manufacturer | PIC GmbH |
| Operate Time | 1 ms |
| Release Time | 0.4 ms |
| Mounting Type | Through Hole |
| Power - Rated | 5W |
| Current - Carry | 700mA (AC/DC) |
| Length - Overall | 1.125" (28.58mm) |
| Termination Style | PC Pin |
| Height Above Board | 0.225" (5.72mm) |
| Current - Switching | 500mA (AC/DC) |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Switching AC | 100 V |
| Voltage - Switching DC | 140 V |
