PCA Electronics, Inc. EPC3668G-LF

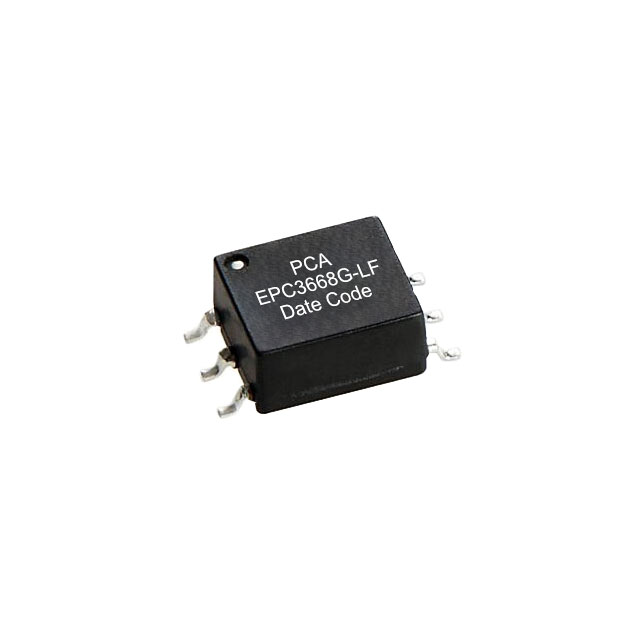

Image shown is a representation only
Manufacturer
Manufacturer No
EPC3668G-LF
Packaging
Tape & Reel (TR)
Description
XFMR P-P DC/DC CONV 1MH SMD
Detailed Description
Push-Pull Converters For For DC/DC Converters SMPS Transformer 2500Vrms Isolation 300 ~ 620kHz Surface Mount
DataSheet
Type
For DC/DC Converters
Series
EPC-SMT6
Footprint
0.276" L x 0.433" W (7.01mm x 11.00mm)
Frequency
300 ~ 620kHz
Packaging
Tape & Reel (TR)
Part Status
Active
Applications
Push-Pull Converters
Manufacturer
PCA Electronics, Inc.
Mounting Type
Surface Mount
Intended Chipset
SN6501, SN6505B
Voltage - Primary
5V
Voltage - Auxiliary
5V
Voltage - Isolation
2500Vrms
Chipset Manufacturer
Texas Instruments
Height - Seated (Max)
0.165" (4.19mm)
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
1mH @ 10KHz
| Attribute | Value |
|---|---|
| Type | For DC/DC Converters |
| Series | EPC-SMT6 |
| Footprint | 0.276" L x 0.433" W (7.01mm x 11.00mm) |
| Frequency | 300 ~ 620kHz |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Applications | Push-Pull Converters |
| Manufacturer | PCA Electronics, Inc. |
| Mounting Type | Surface Mount |
| Intended Chipset | SN6501, SN6505B |
| Voltage - Primary | 5V |
| Voltage - Auxiliary | 5V |
| Voltage - Isolation | 2500Vrms |
| Chipset Manufacturer | Texas Instruments |
| Height - Seated (Max) | 0.165" (4.19mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 1mH @ 10KHz |
