Step1: Product

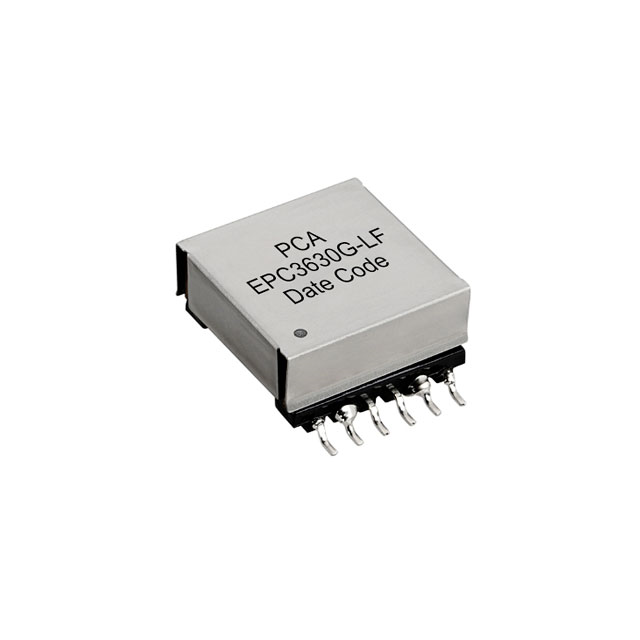

PCA Electronics, Inc. EPC3630G-LF
Image shown is a representation only
Manufacturer
Manufacturer No
EPC3630G-LF
Packaging
Tray
Description
XFMR FLYBACK DC/DC CONV 15UH SMD
Detailed Description
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 250kHz Surface Mount
DataSheet
Type
For DC/DC Converters
Series
EPC-EFD25
Footprint
1.036" L x 1.250" W (26.31mm x 31.75mm)
Frequency
250kHz
Packaging
Tray
Part Status
Active
Applications
Flyback Converters
Manufacturer
PCA Electronics, Inc.
Mounting Type
Surface Mount
Intended Chipset
LT4295
Voltage - Primary
40 ~ 57V
Voltage - Auxiliary
24V
Voltage - Isolation
1500Vrms
Chipset Manufacturer
Analog Devices
Height - Seated (Max)
0.540" (13.72mm)
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
15µH @ 100KHz
| Attribute | Value |
|---|---|
| Type | For DC/DC Converters |
| Series | EPC-EFD25 |
| Footprint | 1.036" L x 1.250" W (26.31mm x 31.75mm) |
| Frequency | 250kHz |
| Packaging | Tray |
| Part Status | Active |
| Applications | Flyback Converters |
| Manufacturer | PCA Electronics, Inc. |
| Mounting Type | Surface Mount |
| Intended Chipset | LT4295 |
| Voltage - Primary | 40 ~ 57V |
| Voltage - Auxiliary | 24V |
| Voltage - Isolation | 1500Vrms |
| Chipset Manufacturer | Analog Devices |
| Height - Seated (Max) | 0.540" (13.72mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 15µH @ 100KHz |
