Step1: Product

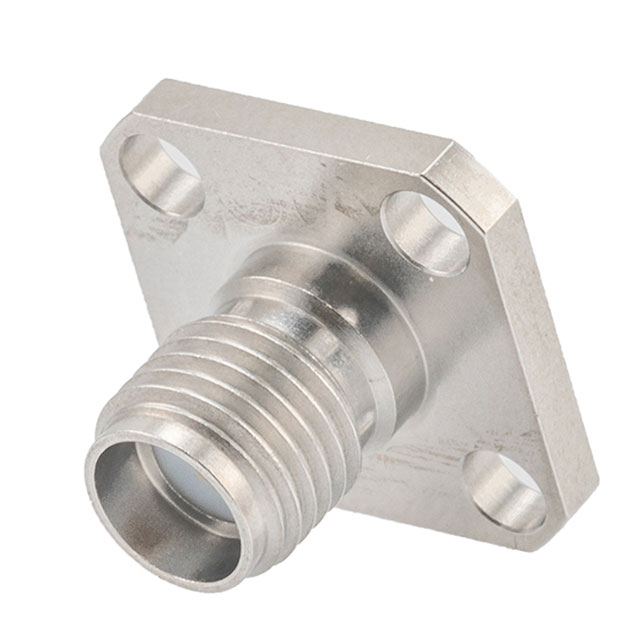

Pasternack PE45569
Image shown is a representation only
Manufacturer
Manufacturer No
PE45569
Packaging
Bag
Description
SMA(F) FLD RPL 4HOLE 0.018" PIN
Detailed Description
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Compression
DataSheet
Mfr
Pasternack
Features
Field Replaceable, For Hermetically Sealed Pin
Impedance
50 Ohms
Packaging
Bag
Part Status
Active
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Socket
Fastening Type
Threaded
Connector Style
SMA
Frequency - Max
27 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Screw
Base Product Number
PE4556
Contact Termination
Compression
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Pasternack |
| Features | Field Replaceable, For Hermetically Sealed Pin |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Part Status | Active |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Threaded |
| Connector Style | SMA |
| Frequency - Max | 27 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Screw |
| Base Product Number | PE4556 |
| Contact Termination | Compression |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
