Step1: Product

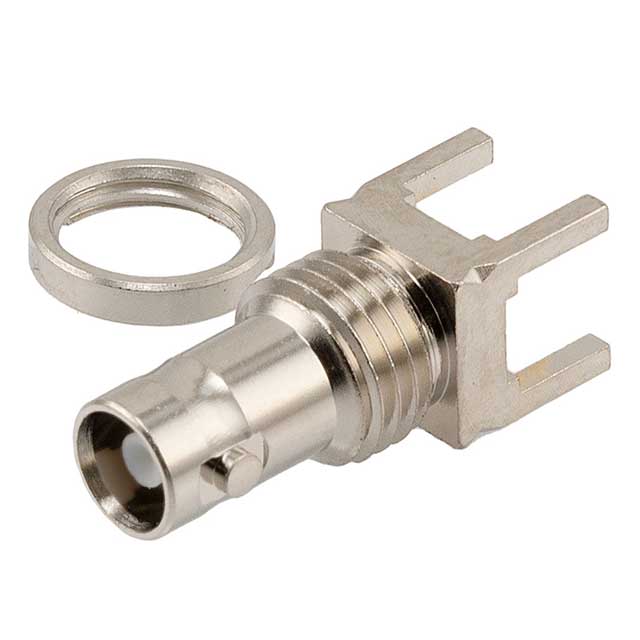

Pasternack PE40013
Image shown is a representation only
Manufacturer
Manufacturer No
PE40013
Quantity
1
Availability
In Stock
Packaging
Bulk
Description
HD-BNC(F) BLKHD MNT
Detailed Description
BNC, HD Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole Solder
DataSheet
Mfr
Pasternack
Impedance
75 Ohms
Packaging
Bulk
Body Finish
Nickel
Part Status
Obsolete
Body Material
Brass
Housing Color
Silver
Mounting Type
Panel Mount, Through Hole
Connector Type
Jack, Female Socket
Fastening Type
Bayonet Lock
Connector Style
BNC, HD
Frequency - Max
12 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Shield Termination
Solder
Base Product Number
PE4001
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Pasternack |
| Impedance | 75 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Part Status | Obsolete |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Jack, Female Socket |
| Fastening Type | Bayonet Lock |
| Connector Style | BNC, HD |
| Frequency - Max | 12 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shield Termination | Solder |
| Base Product Number | PE4001 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
