Step1: Product

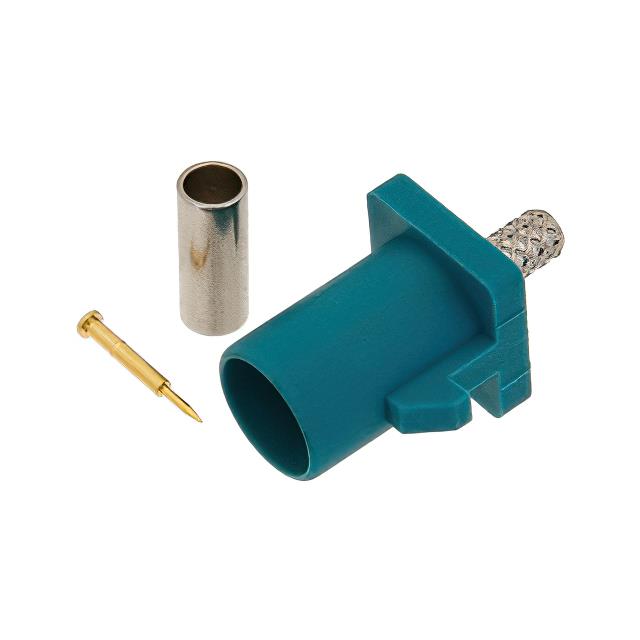

Pasternack PE45404Z
Image shown is a representation only
Manufacturer
Manufacturer No
PE45404Z
Quantity
1
Availability
In Stock
Packaging
Retail Package
Description
FAKRA Plug Connector Crimp/Solde
Detailed Description
SMB, Fakra Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
DataSheet
Mfr
Pasternack
Features
Code Z
Impedance
50 Ohms
Packaging
Retail Package
Body Finish
Nickel
Cable Group
RG-174, 188, 316, LMR-100
Part Status
Active
Body Material
Brass
Housing Color
Blue, Water
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Locking Ramp
Voltage Rating
335 V
Connector Style
SMB, Fakra
Frequency - Max
4 GHz
Number of Ports
1
Shield Termination
Crimp
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Phosphor Bronze
| Attribute | Value |
|---|---|
| Mfr | Pasternack |
| Features | Code Z |
| Impedance | 50 Ohms |
| Packaging | Retail Package |
| Body Finish | Nickel |
| Cable Group | RG-174, 188, 316, LMR-100 |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Blue, Water |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Locking Ramp |
| Voltage Rating | 335 V |
| Connector Style | SMB, Fakra |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze |
