Step1: Product
Pasternack PE4486

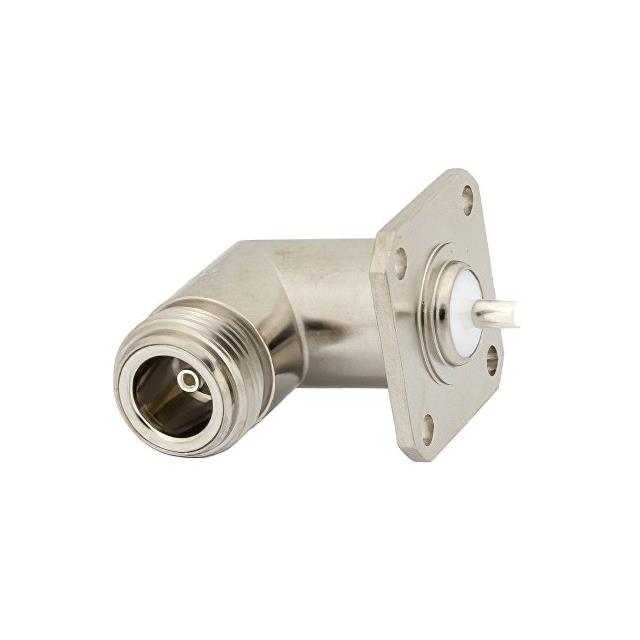

Image shown is a representation only
Manufacturer
Manufacturer No
PE4486
Packaging
Retail Package
Description
N Female Right Angle Connector S
Detailed Description
N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount, Right Angle Solder Cup
DataSheet
Mfr
Pasternack
Impedance
50 Ohms
Packaging
Retail Package
Body Finish
Nickel
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mounting Type
Panel Mount, Right Angle
Connector Type
Receptacle, Female Socket
Fastening Type
Threaded
Voltage Rating
1000 V
Connector Style
N Type
Frequency - Max
12.4 GHz
Number of Ports
1
Mounting Feature
Flange
Shield Termination
Solder
Contact Termination
Solder Cup
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Silver
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Pasternack |
| Impedance | 50 Ohms |
| Packaging | Retail Package |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Panel Mount, Right Angle |
| Connector Type | Receptacle, Female Socket |
| Fastening Type | Threaded |
| Voltage Rating | 1000 V |
| Connector Style | N Type |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Shield Termination | Solder |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Silver |
| Center Contact Material | Beryllium Copper |
