Step1: Product
Pasternack PE4269

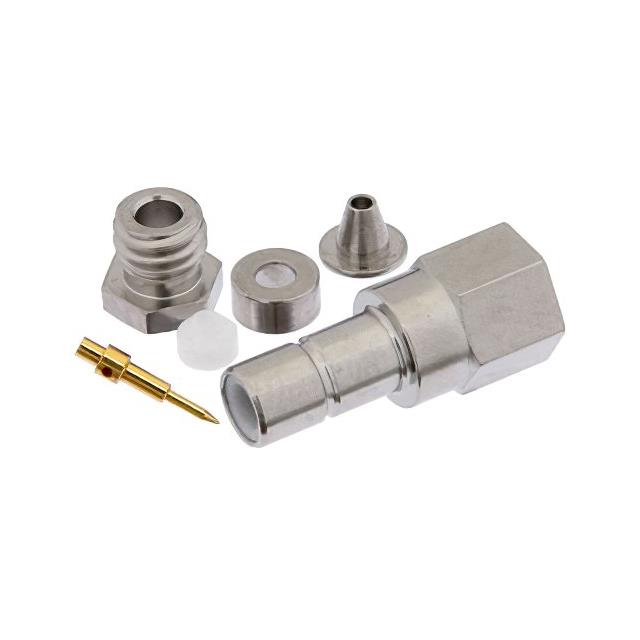

Image shown is a representation only
Manufacturer
Manufacturer No
PE4269
Packaging
Retail Package
Description
SMB Jack Connector Clamp/Solder
Detailed Description
SMB Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
DataSheet
Mfr
Pasternack
Impedance
50 Ohms
Packaging
Retail Package
Body Finish
Nickel
Cable Group
RG-178, 196
Part Status
Obsolete
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Insertion Loss
0.30dB
Voltage Rating
250 V
Connector Style
SMB
Frequency - Max
4 GHz
Number of Ports
1
Shield Termination
Clamp
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Pasternack |
| Impedance | 50 Ohms |
| Packaging | Retail Package |
| Body Finish | Nickel |
| Cable Group | RG-178, 196 |
| Part Status | Obsolete |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | 0.30dB |
| Voltage Rating | 250 V |
| Connector Style | SMB |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Shield Termination | Clamp |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
