Step1: Product

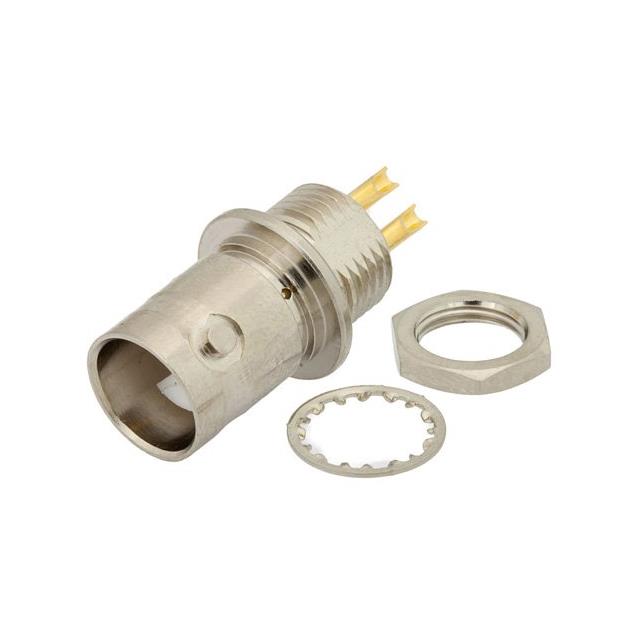

Pasternack PE4238
Image shown is a representation only
Manufacturer
Manufacturer No
PE4238
Packaging
Retail Package
Description
BNC Twinax Jack Bulkhead Mount C
Detailed Description
BNC, Twinaxial Connector Jack, Female Socket and Male Pin 78 Ohms Panel Mount Solder Cup
DataSheet
Mfr
Pasternack
Impedance
78 Ohms
Packaging
Retail Package
Body Finish
Nickel
Part Status
Active
Body Material
Brass
Housing Color
Silver
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket and Male Pin
Fastening Type
Bayonet Lock
Voltage Rating
500 V
Connector Style
BNC, Twinaxial
Frequency - Max
500 MHz
Number of Ports
1
Mounting Feature
Bulkhead - Rear Side Nut
Shield Termination
Solder
Contact Termination
Solder Cup
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Pasternack |
| Impedance | 78 Ohms |
| Packaging | Retail Package |
| Body Finish | Nickel |
| Part Status | Active |
| Body Material | Brass |
| Housing Color | Silver |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket and Male Pin |
| Fastening Type | Bayonet Lock |
| Voltage Rating | 500 V |
| Connector Style | BNC, Twinaxial |
| Frequency - Max | 500 MHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Shield Termination | Solder |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
