Step1: Product

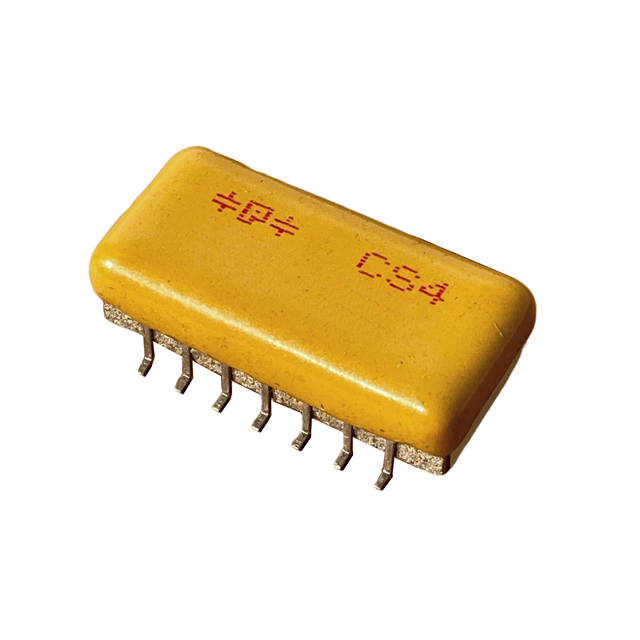

Paktron 106K100CS4G-FA
Image shown is a representation only
Manufacturer
Manufacturer No
106K100CS4G-FA
Package
14-SMD, Gull Wing
Packaging
Tube
Description
CAPACITOR MLP 10UF 100V SMD
Detailed Description
10 µF Film Capacitor 80V 100V Polyester, Metallized 14-SMD, Gull Wing
DataSheet
Mfr
Paktron
Series
Capstick®
Features
Low ESR, High Temperature
Packaging
Tube
Tolerance
±10%
Capacitance
10 µF
Part Status
Active
Termination
Gull Wing
Applications
EMI, RFI Suppression; High Pulse, DV/DT
Lead Spacing
0.394" (10.00mm)
Mounting Type
Surface Mount
Package / Case
14-SMD, Gull Wing
Size / Dimension
0.996" L x 0.500" W (25.30mm x 12.70mm)
Dielectric Material
Polyester, Metallized
Voltage Rating - AC
80V
Voltage Rating - DC
100V
Height - Seated (Max)
0.248" (6.30mm)
Operating Temperature
-55°C ~ 125°C
ESR (Equivalent Series Resistance)
3 mOhms
| Attribute | Value |
|---|---|
| Mfr | Paktron |
| Series | Capstick® |
| Features | Low ESR, High Temperature |
| Packaging | Tube |
| Tolerance | ±10% |
| Capacitance | 10 µF |
| Part Status | Active |
| Termination | Gull Wing |
| Applications | EMI, RFI Suppression; High Pulse, DV/DT |
| Lead Spacing | 0.394" (10.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD, Gull Wing |
| Size / Dimension | 0.996" L x 0.500" W (25.30mm x 12.70mm) |
| Dielectric Material | Polyester, Metallized |
| Voltage Rating - AC | 80V |
| Voltage Rating - DC | 100V |
| Height - Seated (Max) | 0.248" (6.30mm) |
| Operating Temperature | -55°C ~ 125°C |
| ESR (Equivalent Series Resistance) | 3 mOhms |
