onsemi NCV7724DQBR2G

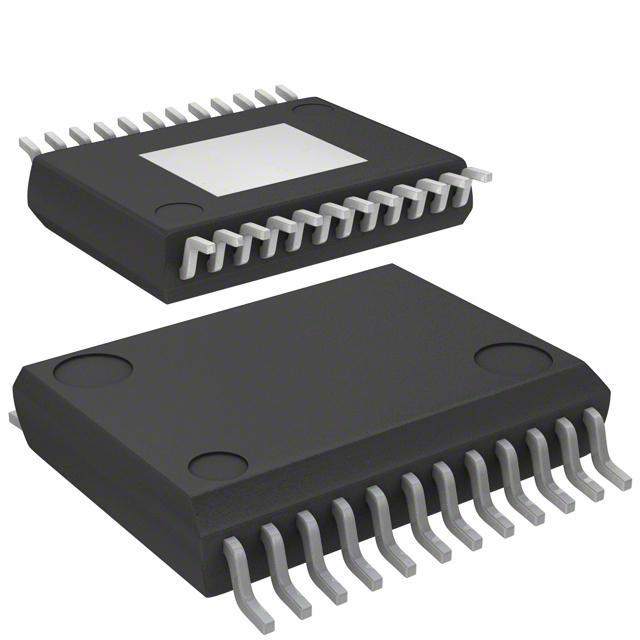

Image shown is a representation only
Manufacturer
Manufacturer No
NCV7724DQBR2G
Quantity
10
Availability
In Stock
Package
24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC HALF BRIDGE DRVR 1.1A 24SSOP
Detailed Description
Half Bridge (8) Driver DC Motors, General Purpose NMOS 24-SSOP-EP
DataSheet
Grade
Automotive
Features
Charge Pump
Interface
Logic, PWM, SPI, Serial
Load Type
Inductive, Capacitive
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
NMOS
Part Status
Active
Applications
DC Motors, General Purpose
Manufacturer
onsemi
Rds On (Typ)
800mOhm LS, 800mOhm HS
Mounting Type
Surface Mount
Qualification
AEC-Q100
Package / Case
24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Voltage - Load
5.5V ~ 32V
Fault Protection
Over Current, Over Temperature, UVLO
Voltage - Supply
3.15V ~ 5.25V
Base Product Number
NCV7724
Output Configuration
Half Bridge (8)
Current - Peak Output
1.1A
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
24-SSOP-EP
Current - Output / Channel
1.1A
