Step1: Product
onsemi LB1836M-TLM-E

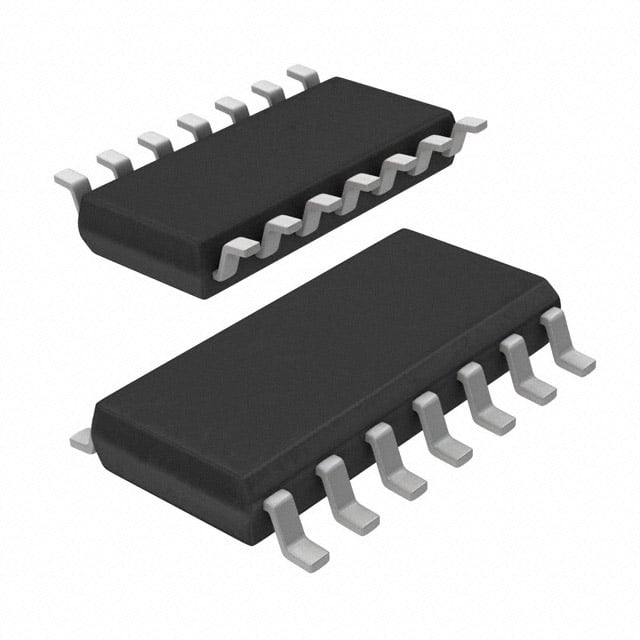

Image shown is a representation only
Manufacturer
Manufacturer No
LB1836M-TLM-E
Quantity
715
Availability
In Stock
Package
14-LSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR)
Description
IC MOTOR DRIVER PAR MFP14S
Detailed Description
Half Bridge (4) Driver DC Motors, General Purpose Bipolar 14-MFPS
Datasheet
Interface
Logic
Load Type
Inductive
Packaging
Tape & Reel (TR)
Technology
Bipolar
Applications
DC Motors, General Purpose
Manufacturer
onsemi
Mounting Type
Surface Mount
Package / Case
14-LSOP (0.173", 4.40mm Width)
Voltage - Load
1.8V ~ 9V
Fault Protection
Over Temperature
Voltage - Supply
2.5V ~ 9V
Base Product Number
LB1836
Output Configuration
Half Bridge (4)
Operating Temperature
-40°C ~ 85°C (TA)
Supplier Device Package
14-MFPS
Current - Output / Channel
1A
| Attribute | Value |
|---|---|
| Interface | Logic |
| Load Type | Inductive |
| Packaging | Tape & Reel (TR) |
| Technology | Bipolar |
| Applications | DC Motors, General Purpose |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package / Case | 14-LSOP (0.173", 4.40mm Width) |
| Voltage - Load | 1.8V ~ 9V |
| Fault Protection | Over Temperature |
| Voltage - Supply | 2.5V ~ 9V |
| Base Product Number | LB1836 |
| Output Configuration | Half Bridge (4) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 14-MFPS |
| Current - Output / Channel | 1A |
