onsemi KSH29CTF

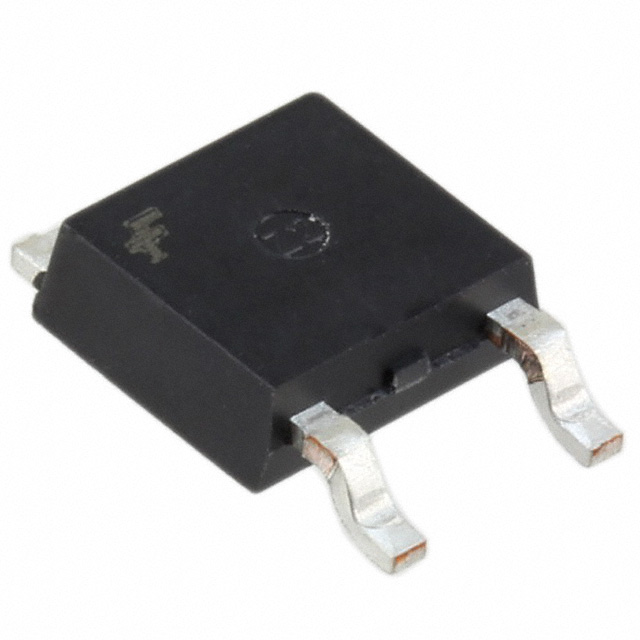

Image shown is a representation only
Manufacturer
Manufacturer No
KSH29CTF
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tape & Reel (TR)
Description
TRANS NPN 100V 1A DPAK
Detailed Description
Bipolar (BJT) Transistor NPN 100 V 1 A 3MHz 1.56 W Surface Mount DPAK
DataSheet
Mfr
onsemi
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Power - Max
1.56 W
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Transistor Type
NPN
Base Product Number
KSH29
Operating Temperature
150°C (TJ)
Frequency - Transition
3MHz
Supplier Device Package
DPAK
Vce Saturation (Max) @ Ib, Ic
700mV @ 125mA, 1A
Current - Collector (Ic) (Max)
1 A
Current - Collector Cutoff (Max)
50µA
DC Current Gain (hFE) (Min) @ Ic, Vce
15 @ 1A, 4V
Voltage - Collector Emitter Breakdown (Max)
100 V
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Power - Max | 1.56 W |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Transistor Type | NPN |
| Base Product Number | KSH29 |
| Operating Temperature | 150°C (TJ) |
| Frequency - Transition | 3MHz |
| Supplier Device Package | DPAK |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 125mA, 1A |
| Current - Collector (Ic) (Max) | 1 A |
| Current - Collector Cutoff (Max) | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 1A, 4V |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
