Fairchild/ON Semiconductor KSH2955TM

Name: KSH2955TM
Brand: Fairchild/ON Semiconductor
SKU: 13056047-KSH2955TM
Availability: LimitedAvailability

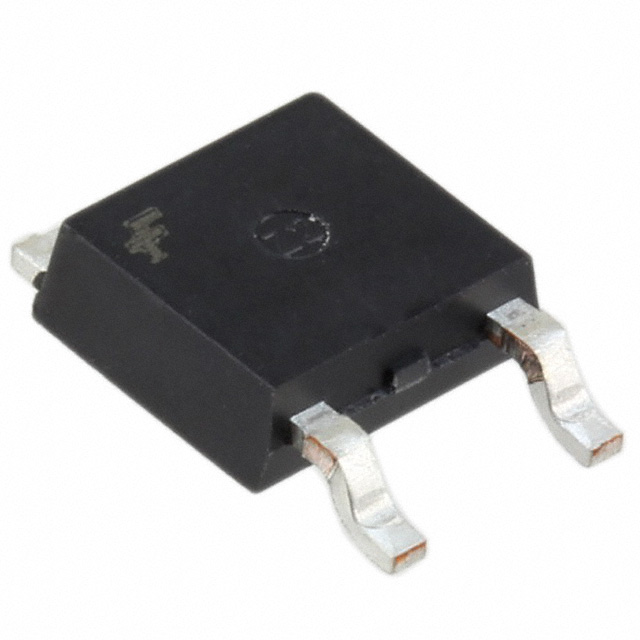

Image shown is a representation only

Manufacturer

Manufacturer No

KSH2955TM

Package

TO-252-3, DPAK (2 Leads + Tab), SC-63

Packaging

Bulk

Description

TRANS PNP 60V 10A DPAK

Detailed Description

Bipolar (BJT) Transistor PNP 60 V 10 A 2MHz 1.75 W Surface Mount DPAK

Datasheet

Mfr

Fairchild/ON Semiconductor

Packaging

Bulk

Power - Max

1.75 W

Mounting Type

Surface Mount

Package / Case

TO-252-3, DPAK (2 Leads + Tab), SC-63

Transistor Type

PNP

Base Product Number

KSH29

Operating Temperature

150°C (TJ)

Frequency - Transition

2MHz

Supplier Device Package

DPAK

Vce Saturation (Max) @ Ib, Ic

8V @ 3.3A, 10A

Current - Collector (Ic) (Max)

10 A

Current - Collector Cutoff (Max)

50µA

DC Current Gain (hFE) (Min) @ Ic, Vce

20 @ 4A, 4V

Voltage - Collector Emitter Breakdown (Max)

60 V

Attribute	Value
Mfr	Fairchild/ON Semiconductor
Packaging	Bulk
Power - Max	1.75 W
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63
Transistor Type	PNP
Base Product Number	KSH29
Operating Temperature	150°C (TJ)
Frequency - Transition	2MHz
Supplier Device Package	DPAK
Vce Saturation (Max) @ Ib, Ic	8V @ 3.3A, 10A
Current - Collector (Ic) (Max)	10 A
Current - Collector Cutoff (Max)	50µA
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 4A, 4V
Voltage - Collector Emitter Breakdown (Max)	60 V
