Step1: Product

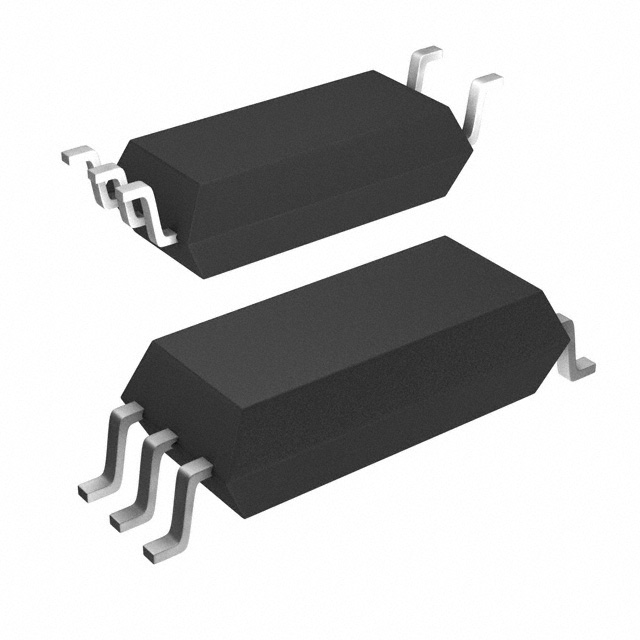

onsemi FOD8320R2V
Image shown is a representation only
Manufacturer
Manufacturer No
FOD8320R2V
Quantity
10
Availability
In Stock
Package
6-SOIC (0.362", 9.20mm Width), 5 Leads
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
OPTOISO 5KV 1CH GATE DVR 5SOP
Detailed Description
3A Gate Driver Optical Coupling 5000Vrms 1 Channel 5-SOP
Datasheet
Mfr
onsemi
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Optical Coupling
Mounting Type
Surface Mount
Package / Case
6-SOIC (0.362", 9.20mm Width), 5 Leads
Approval Agency
IEC/EN/DIN, UL
Number of Channels
1
Base Product Number
FOD8320
Voltage - Isolation
5000Vrms
Current - Peak Output
3A
Operating Temperature
-40°C ~ 100°C
Rise / Fall Time (Typ)
60ns, 60ns
Supplier Device Package
5-SOP
Voltage - Output Supply
16V ~ 30V
Current - Output High, Low
2A, 2A
Pulse Width Distortion (Max)
100ns
Voltage - Forward (Vf) (Typ)
1.5V
Current - DC Forward (If) (Max)
25 mA
Propagation Delay tpLH / tpHL (Max)
400ns, 400ns
Common Mode Transient Immunity (Min)
35kV/µs
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Optical Coupling |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.362", 9.20mm Width), 5 Leads |
| Approval Agency | IEC/EN/DIN, UL |
| Number of Channels | 1 |
| Base Product Number | FOD8320 |
| Voltage - Isolation | 5000Vrms |
| Current - Peak Output | 3A |
| Operating Temperature | -40°C ~ 100°C |
| Rise / Fall Time (Typ) | 60ns, 60ns |
| Supplier Device Package | 5-SOP |
| Voltage - Output Supply | 16V ~ 30V |
| Current - Output High, Low | 2A, 2A |
| Pulse Width Distortion (Max) | 100ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 25 mA |
| Propagation Delay tpLH / tpHL (Max) | 400ns, 400ns |
| Common Mode Transient Immunity (Min) | 35kV/µs |
