onsemi FAN73896MX

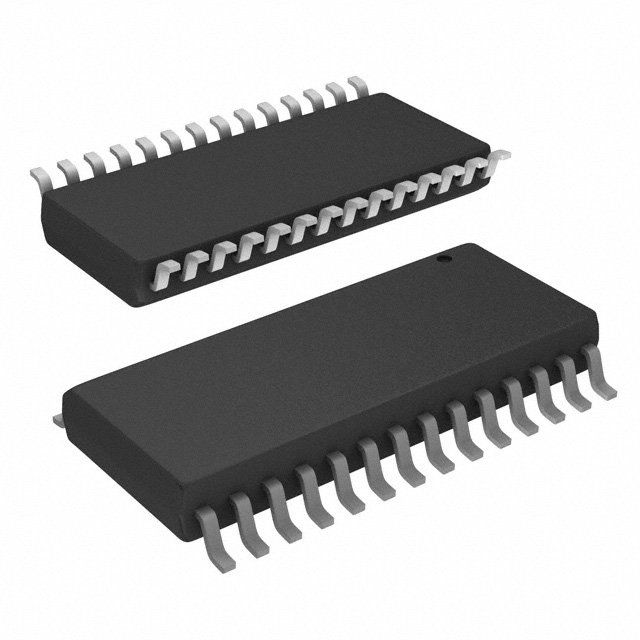

Image shown is a representation only
Manufacturer
Manufacturer No
FAN73896MX
Quantity
137
Availability
In Stock
Package
28-SOIC (0.295", 7.50mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC GATE DRVR HALF-BRIDGE 28SOIC
Detailed Description
Half-Bridge Gate Driver IC Non-Inverting 28-SOIC
DataSheet
Gate Type
IGBT, MOSFET (N-Channel)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Input Type
Non-Inverting
Part Status
Obsolete
Channel Type
3-Phase
Manufacturer
onsemi
Mounting Type
Surface Mount
Package / Case
28-SOIC (0.295", 7.50mm Width)
Voltage - Supply
12V ~ 20V
Number of Drivers
6
Base Product Number
FAN73896
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 150°C (TJ)
Rise / Fall Time (Typ)
50ns, 30ns
Supplier Device Package
28-SOIC
Logic Voltage - VIL, VIH
0.8V, 2.5V
High Side Voltage - Max (Bootstrap)
600 V
Current - Peak Output (Source, Sink)
350mA, 650mA
| Attribute | Value |
|---|---|
| Gate Type | IGBT, MOSFET (N-Channel) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Input Type | Non-Inverting |
| Part Status | Obsolete |
| Channel Type | 3-Phase |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Voltage - Supply | 12V ~ 20V |
| Number of Drivers | 6 |
| Base Product Number | FAN73896 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rise / Fall Time (Typ) | 50ns, 30ns |
| Supplier Device Package | 28-SOIC |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Current - Peak Output (Source, Sink) | 350mA, 650mA |
