onsemi NCV51513ABMNTWG

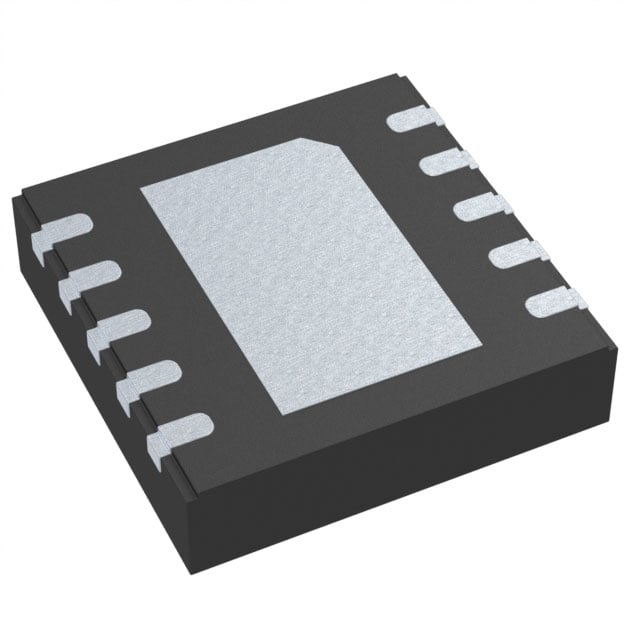

Image shown is a representation only
Manufacturer
Manufacturer No
NCV51513ABMNTWG
Quantity
2811
Availability
In Stock
Package
10-VFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC GATE DRVR HALF-BRIDGE 10DFNW
Detailed Description
Half-Bridge Gate Driver IC Inverting, Non-Inverting 10-DFNW (3x3)
DataSheet
Gate Type
MOSFET (N-Channel)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
Inverting, Non-Inverting
Part Status
Active
Channel Type
Independent
Manufacturer
onsemi
Mounting Type
Surface Mount, Wettable Flank
Package / Case
10-VFDFN Exposed Pad
Voltage - Supply
8V ~ 19V
Number of Drivers
2
Base Product Number
NCV51513
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 125°C (TJ)
Rise / Fall Time (Typ)
9ns, 7ns
Supplier Device Package
10-DFNW (3x3)
Logic Voltage - VIL, VIH
0.8V, 2.3V
High Side Voltage - Max (Bootstrap)
150 V
Current - Peak Output (Source, Sink)
2A, 3A
| Attribute | Value |
|---|---|
| Gate Type | MOSFET (N-Channel) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | Inverting, Non-Inverting |
| Part Status | Active |
| Channel Type | Independent |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 10-VFDFN Exposed Pad |
| Voltage - Supply | 8V ~ 19V |
| Number of Drivers | 2 |
| Base Product Number | NCV51513 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Rise / Fall Time (Typ) | 9ns, 7ns |
| Supplier Device Package | 10-DFNW (3x3) |
| Logic Voltage - VIL, VIH | 0.8V, 2.3V |
| High Side Voltage - Max (Bootstrap) | 150 V |
| Current - Peak Output (Source, Sink) | 2A, 3A |
