onsemi FAN5701UC20X

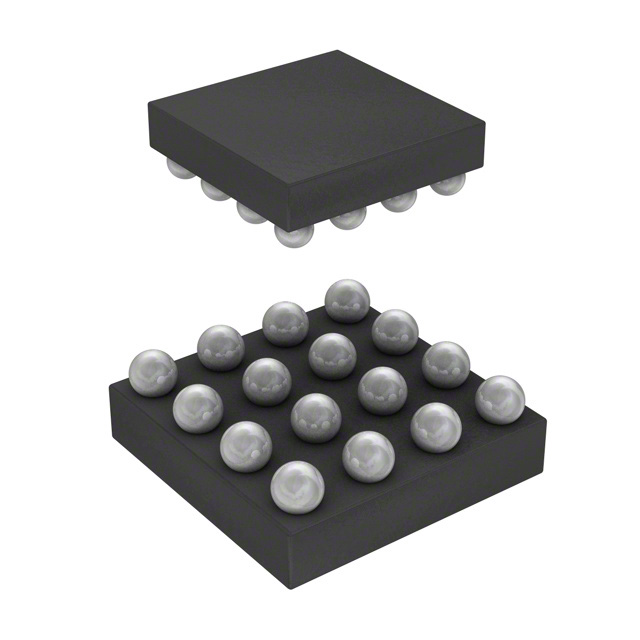

Image shown is a representation only
Manufacturer
Manufacturer No
FAN5701UC20X
Package
16-UFBGA, WLCSP
Packaging
Tape & Reel (TR)
Description
IC LED DRV RGLTR PWM 16WLCSP
Detailed Description
LED Driver IC 6 Output DC DC Regulator Switched Capacitor (Charge Pump) PWM Dimming 20mA 16-WLCSP (1.71x1.71)
DataSheet
Type
DC DC Regulator
Dimming
PWM
Topology
Switched Capacitor (Charge Pump)
Frequency
1.2MHz
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Applications
Backlight
Manufacturer
onsemi
Mounting Type
Surface Mount
Package / Case
16-UFBGA, WLCSP
Number of Outputs
6
Internal Switch(s)
Yes
Base Product Number
FAN5701
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Supply (Max)
5.5V
Voltage - Supply (Min)
2.7V
Supplier Device Package
16-WLCSP (1.71x1.71)
Current - Output / Channel
20mA
| Attribute | Value |
|---|---|
| Type | DC DC Regulator |
| Dimming | PWM |
| Topology | Switched Capacitor (Charge Pump) |
| Frequency | 1.2MHz |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Applications | Backlight |
| Manufacturer | onsemi |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFBGA, WLCSP |
| Number of Outputs | 6 |
| Internal Switch(s) | Yes |
| Base Product Number | FAN5701 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Supply (Min) | 2.7V |
| Supplier Device Package | 16-WLCSP (1.71x1.71) |
| Current - Output / Channel | 20mA |
