Step1: Product

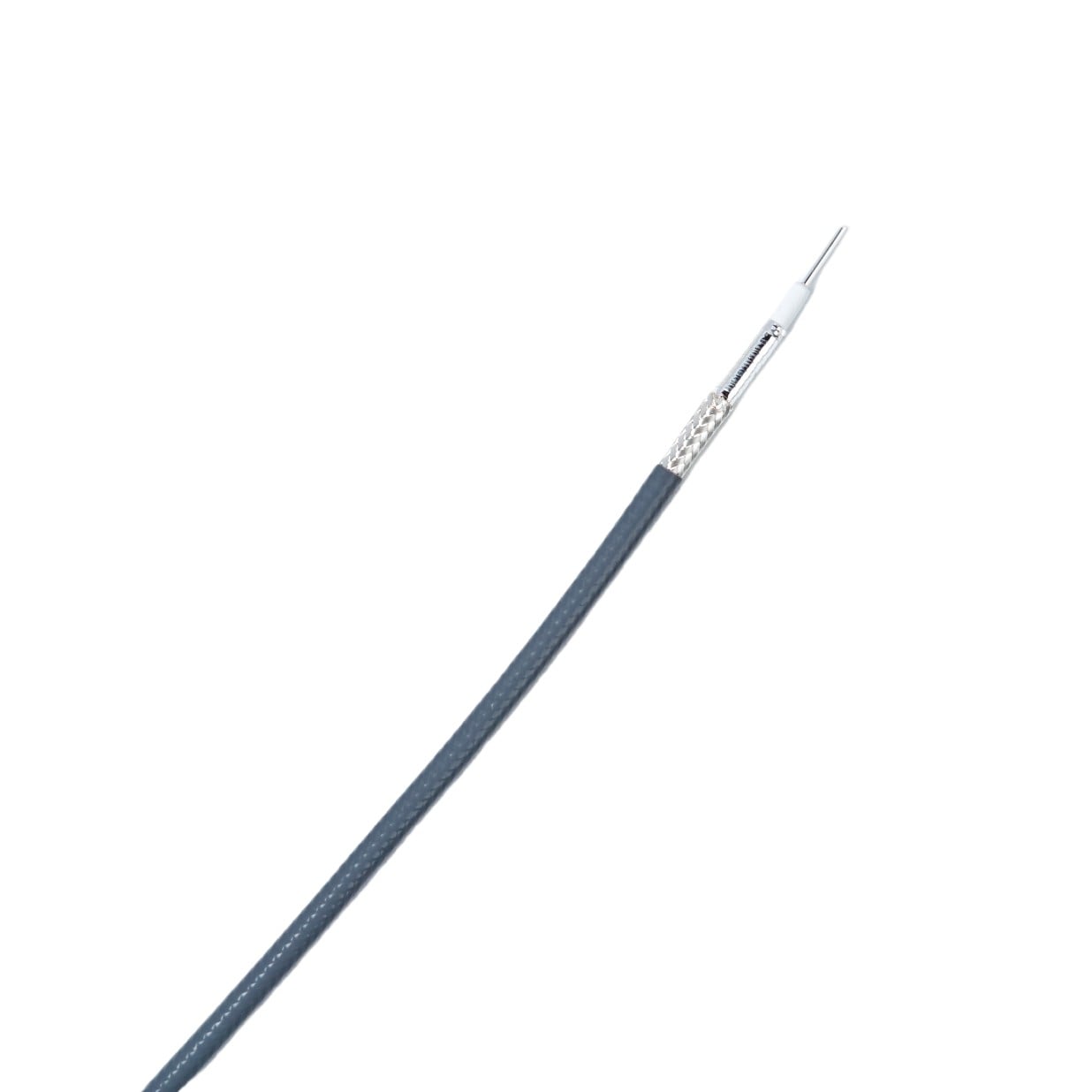

Omnitek Cable Inc. OMNI-086E-01
Image shown is a representation only
Manufacturer
Manufacturer No
OMNI-086E-01
Packaging
Strip
Description
086 Microwave CoaxCable 77%VP Ft
Detailed Description
Coaxial Cable 24 AWG 1.0' (0.30m) 50 Ohms
DataSheet
Length
1.0' (0.30m)
Impedance
50 Ohms
Packaging
Strip
Cable Type
Coaxial
Wire Gauge
24 AWG
Part Status
Active
Shield Type
Foil, Braid
Jacket Color
Gray
Manufacturer
Omnitek Cable Inc.
Shield Coverage
90%
Shield Material
Copper, Silver Coated
Conductor Strand
Solid
Conductor Material
Copper, Silver Coated
Dielectric Diameter
0.056" (1.42mm)
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 200°C
Jacket (Insulation) Diameter
0.086" (2.18mm)
Jacket (Insulation) Material
Fluorinated Ethylene-Propylene (FEP)
VoP, Velocity of Propagation
82.0
| Attribute | Value |
|---|---|
| Length | 1.0' (0.30m) |
| Impedance | 50 Ohms |
| Packaging | Strip |
| Cable Type | Coaxial |
| Wire Gauge | 24 AWG |
| Part Status | Active |
| Shield Type | Foil, Braid |
| Jacket Color | Gray |
| Manufacturer | Omnitek Cable Inc. |
| Shield Coverage | 90% |
| Shield Material | Copper, Silver Coated |
| Conductor Strand | Solid |
| Conductor Material | Copper, Silver Coated |
| Dielectric Diameter | 0.056" (1.42mm) |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 200°C |
| Jacket (Insulation) Diameter | 0.086" (2.18mm) |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| VoP, Velocity of Propagation | 82.0 |
