Step1: Product

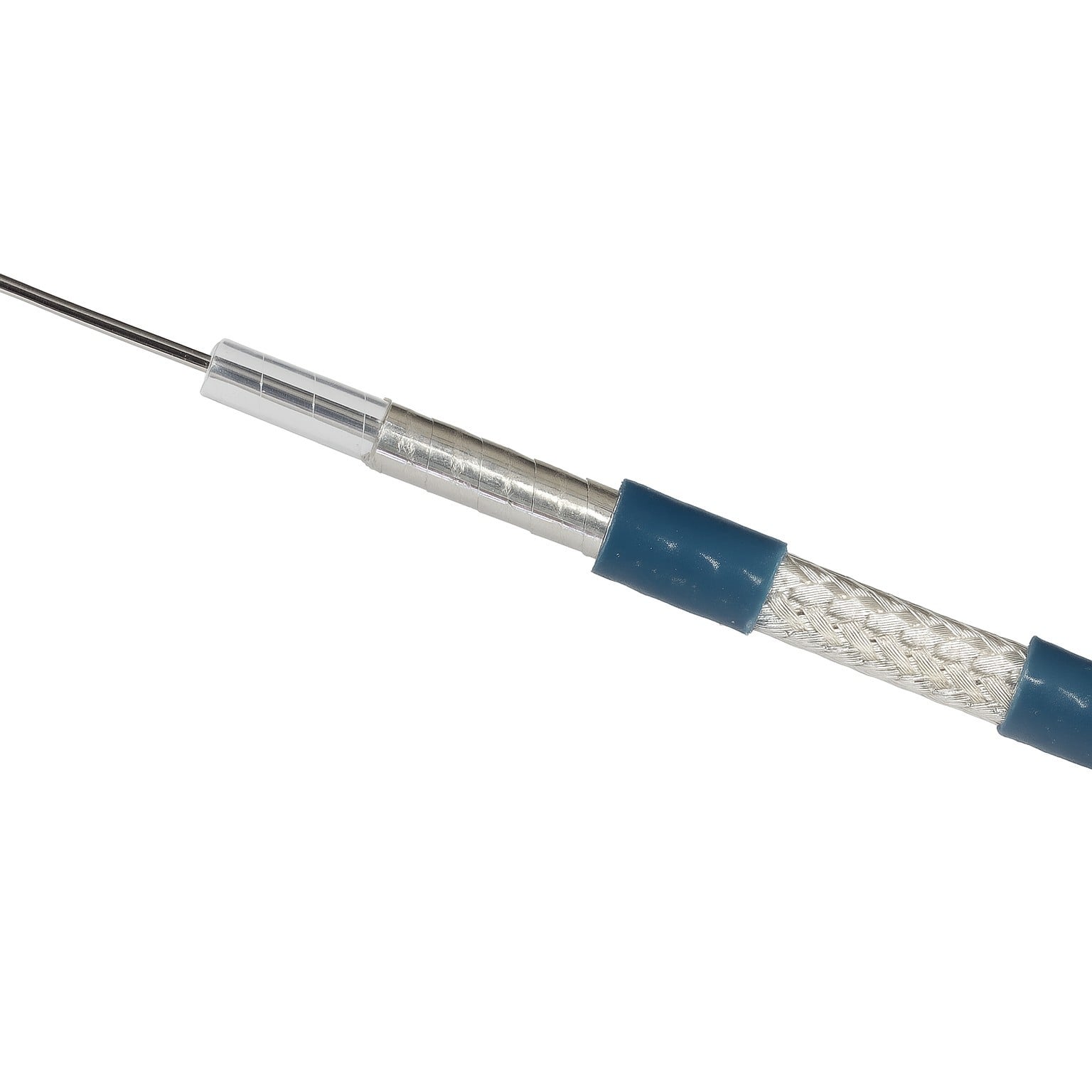

Omnitek Cable Inc. OMNI-047S-01
Image shown is a representation only
Manufacturer
Manufacturer No
OMNI-047S-01
Packaging
Strip
Description
047 Microwave CoaxCable 70%VP Ft
Detailed Description
Micro Coaxial Cable 29 AWG 1.0' (0.30m) 50 Ohms
DataSheet
Length
1.0' (0.30m)
Impedance
50 Ohms
Packaging
Strip
Cable Type
Micro Coaxial
Wire Gauge
29 AWG
Part Status
Active
Shield Type
Foil, Braid
Jacket Color
Blue
Manufacturer
Omnitek Cable Inc.
Shield Coverage
90%
Shield Material
Copper, Silver Coated
Conductor Strand
Solid
Conductor Material
Copper, Silver Coated
Dielectric Diameter
0.036" (0.91mm)
Dielectric Material
Fluorinated Ethylene Propylene (FEP)
Operating Temperature
-55°C ~ 125°C
Jacket (Insulation) Diameter
0.056" (1.42mm)
Jacket (Insulation) Material
Fluorinated Ethylene-Propylene (FEP)
VoP, Velocity of Propagation
70.0
| Attribute | Value |
|---|---|
| Length | 1.0' (0.30m) |
| Impedance | 50 Ohms |
| Packaging | Strip |
| Cable Type | Micro Coaxial |
| Wire Gauge | 29 AWG |
| Part Status | Active |
| Shield Type | Foil, Braid |
| Jacket Color | Blue |
| Manufacturer | Omnitek Cable Inc. |
| Shield Coverage | 90% |
| Shield Material | Copper, Silver Coated |
| Conductor Strand | Solid |
| Conductor Material | Copper, Silver Coated |
| Dielectric Diameter | 0.036" (0.91mm) |
| Dielectric Material | Fluorinated Ethylene Propylene (FEP) |
| Operating Temperature | -55°C ~ 125°C |
| Jacket (Insulation) Diameter | 0.056" (1.42mm) |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| VoP, Velocity of Propagation | 70.0 |
