Omnetics A79614-001

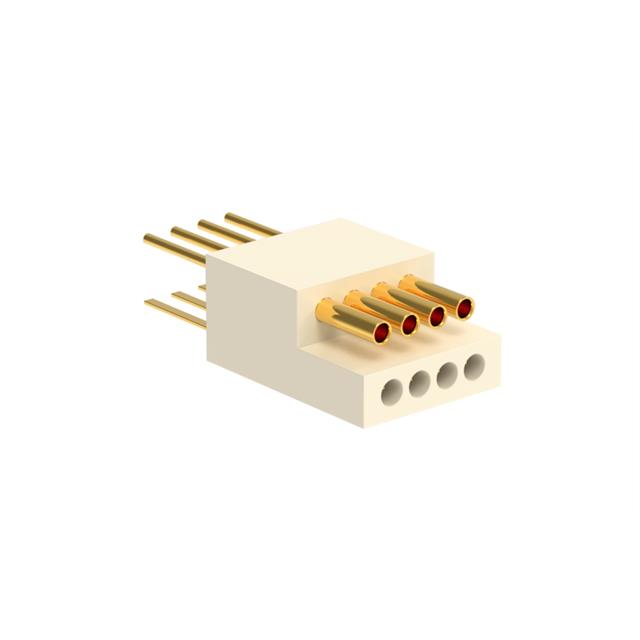

Image shown is a representation only
Manufacturer
Manufacturer No
A79614-001
Packaging
Bag
Description
NANO 8POS MALE/FEMALE POLARIZED
Detailed Description
Connector Header Through Hole 8 position 0.025" (0.64mm)
DataSheet
Mfr
Omnetics
Style
Board to Cable/Wire
Series
Polarized Nano
Packaging
Bag
Part Status
Active
Termination
Solder
Contact Type
Female Socket; Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.025" (0.64mm)
Contact Material
Beryllium Copper
Insulation Color
Natural
Insulation Height
0.170" (4.32mm)
Insulation Material
Thermoplastic
Number of Positions
8
Row Spacing - Mating
0.040" (1.02mm)
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.100" (2.54mm)
Current Rating (Amps)
1A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.060" (1.52mm)
Number of Positions Loaded
All
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Omnetics |
| Style | Board to Cable/Wire |
| Series | Polarized Nano |
| Packaging | Bag |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket; Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.025" (0.64mm) |
| Contact Material | Beryllium Copper |
| Insulation Color | Natural |
| Insulation Height | 0.170" (4.32mm) |
| Insulation Material | Thermoplastic |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.040" (1.02mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.100" (2.54mm) |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.060" (1.52mm) |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
