Step1: Product

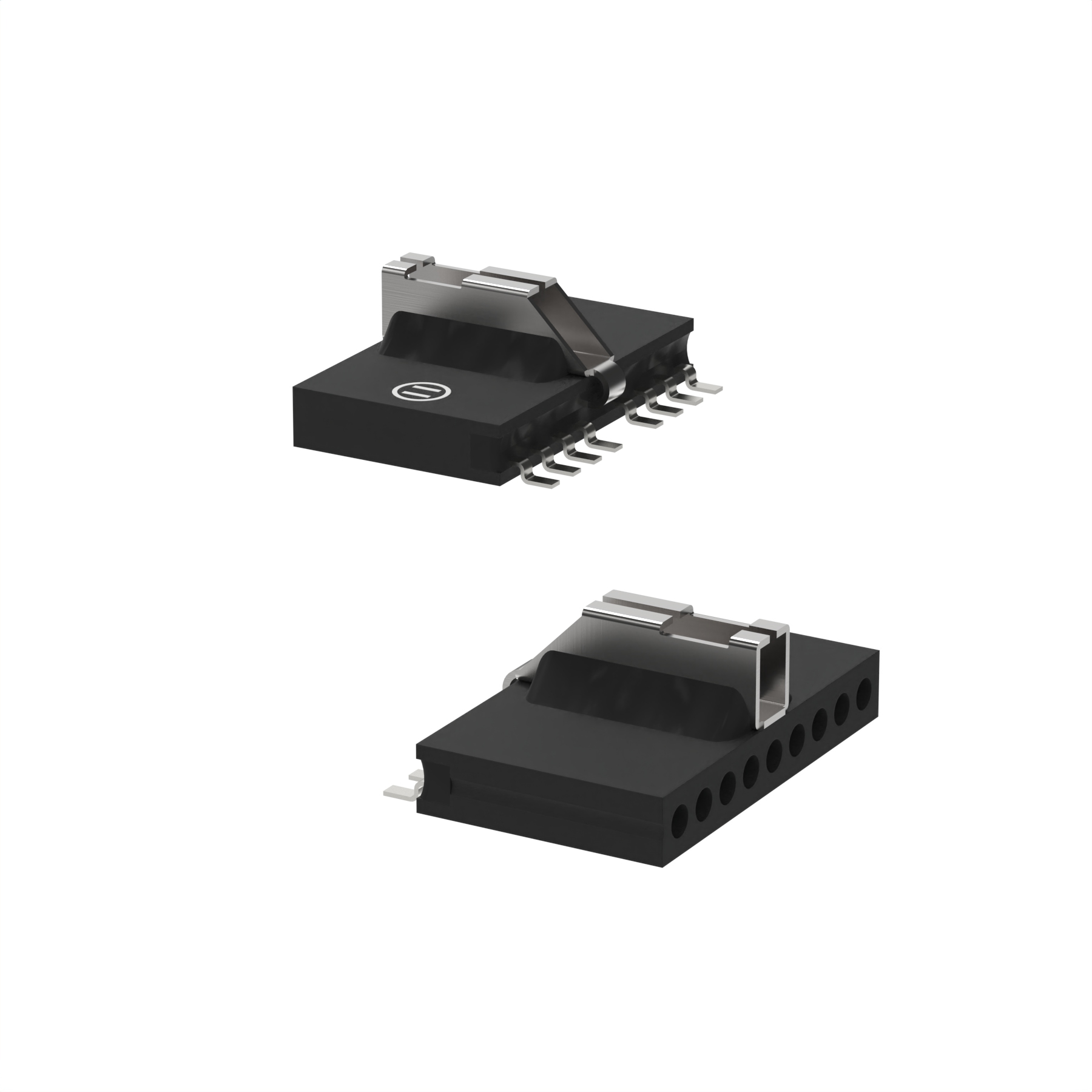

Omnetics A24001-008
Image shown is a representation only
Manufacturer
Manufacturer No
A24001-008
Packaging
Bag
Description
CONNECTOR 8POS PIN MALE W/LATCH
Detailed Description
Connector Header Surface Mount, Right Angle 8 position 0.050" (1.27mm)
DataSheet
Mfr
Omnetics
Style
Board to Cable/Wire
Series
Micro Strip
Packaging
Bag
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Surface Mount, Right Angle
Connector Type
Plug
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.050" (1.27mm)
Contact Material
Beryllium Copper
Insulation Color
Black
Insulation Height
0.075" (1.90mm)
Insulation Material
Polyphenylene Sulfide (PPS)
Number of Positions
8
Contact Finish - Post
Tin-Lead
Current Rating (Amps)
3A per Contact
Operating Temperature
-55°C ~ 125°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Omnetics |
| Style | Board to Cable/Wire |
| Series | Micro Strip |
| Packaging | Bag |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Plug |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Beryllium Copper |
| Insulation Color | Black |
| Insulation Height | 0.075" (1.90mm) |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Number of Positions | 8 |
| Contact Finish - Post | Tin-Lead |
| Current Rating (Amps) | 3A per Contact |
| Operating Temperature | -55°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
