NXP USA Inc. PMN27XPE115

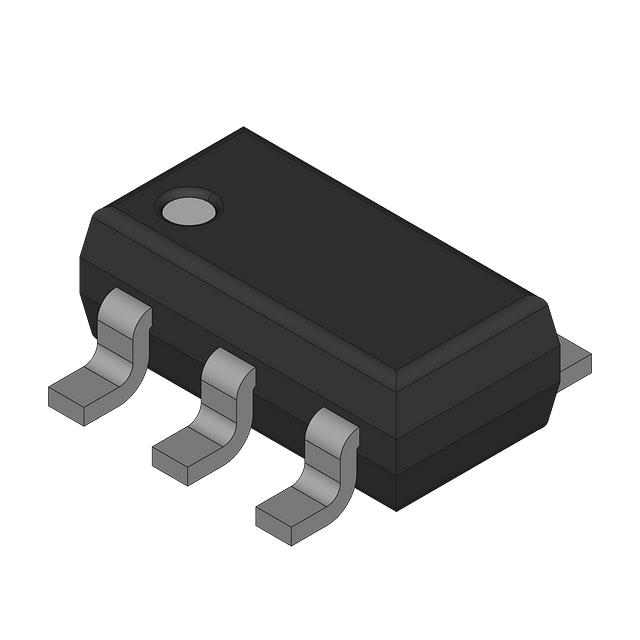

Image shown is a representation only
Manufacturer
Manufacturer No
PMN27XPE115
Package
SC-74, SOT-457
Packaging
Bulk
Description
SMALL SIGNAL FET
Detailed Description
P-Channel 20 V 4.4A (Ta) 530mW (Ta), 8.33W (Tc) Surface Mount 6-TSOP
DataSheet
Mfr
NXP USA Inc.
FET Type
P-Channel
Packaging
Bulk
Vgs (Max)
±12V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
SC-74, SOT-457
Vgs(th) (Max) @ Id
1.25V @ 250µA
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
30mOhm @ 3A, 4.5V
Power Dissipation (Max)
530mW (Ta), 8.33W (Tc)
Supplier Device Package
6-TSOP
Gate Charge (Qg) (Max) @ Vgs
22.5 nC @ 4.5 V
Drain to Source Voltage (Vdss)
20 V
Input Capacitance (Ciss) (Max) @ Vds
1770 pF @ 10 V
Drive Voltage (Max Rds On, Min Rds On)
2.5V, 4.5V
Current - Continuous Drain (Id) @ 25°C
4.4A (Ta)
| Attribute | Value |
|---|---|
| Mfr | NXP USA Inc. |
| FET Type | P-Channel |
| Packaging | Bulk |
| Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Vgs(th) (Max) @ Id | 1.25V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 3A, 4.5V |
| Power Dissipation (Max) | 530mW (Ta), 8.33W (Tc) |
| Supplier Device Package | 6-TSOP |
| Gate Charge (Qg) (Max) @ Vgs | 22.5 nC @ 4.5 V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1770 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Current - Continuous Drain (Id) @ 25°C | 4.4A (Ta) |
