NXP USA Inc. JN5168-001-M03Z

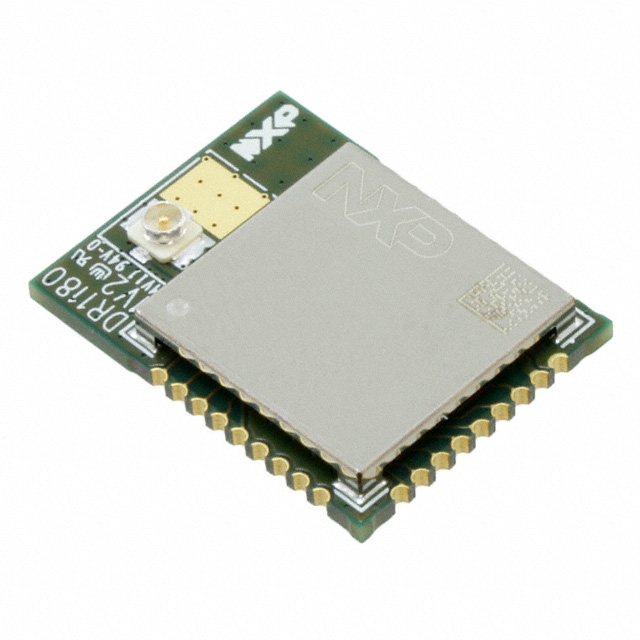

Image shown is a representation only
Manufacturer
Manufacturer No
JN5168-001-M03Z
Package
27-SMD Module
Packaging
Tape & Reel (TR)
Description
RF TXRX MODULE 802.15.4U.FL SMD
Detailed Description
802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
DataSheet
Mfr
NXP USA Inc.
Protocol
Zigbee®
Frequency
2.4GHz
Packaging
Tape & Reel (TR)
Modulation
O-QPSK
Memory Size
256kB Flash, 4kB EEPROM, 32kB RAM
Part Status
Obsolete
Sensitivity
-95dBm
Antenna Type
Antenna Not Included, U.FL
Mounting Type
Surface Mount
Package / Case
27-SMD Module
Power - Output
2.5dBm
Voltage - Supply
2V ~ 3.6V
Serial Interfaces
I2C, SPI, UART
RF Family/Standard
802.15.4
Base Product Number
JN516
Current - Receiving
17mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
15.3mA
| Attribute | Value |
|---|---|
| Mfr | NXP USA Inc. |
| Protocol | Zigbee® |
| Frequency | 2.4GHz |
| Packaging | Tape & Reel (TR) |
| Modulation | O-QPSK |
| Memory Size | 256kB Flash, 4kB EEPROM, 32kB RAM |
| Part Status | Obsolete |
| Sensitivity | -95dBm |
| Antenna Type | Antenna Not Included, U.FL |
| Mounting Type | Surface Mount |
| Package / Case | 27-SMD Module |
| Power - Output | 2.5dBm |
| Voltage - Supply | 2V ~ 3.6V |
| Serial Interfaces | I2C, SPI, UART |
| RF Family/Standard | 802.15.4 |
| Base Product Number | JN516 |
| Current - Receiving | 17mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 15.3mA |
