Step1: Product
NXP USA Inc. IP4264CZ8-40,118

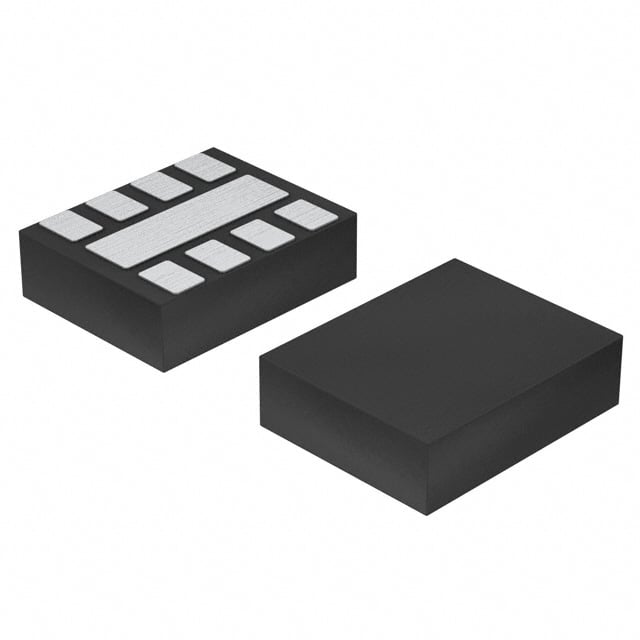

Image shown is a representation only
Manufacturer
Manufacturer No
IP4264CZ8-40,118
Package
8-XFDFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
FILTER RC(PI) 47 OHMS ESD SMD
Detailed Description
RC (Pi) EMI Filter 2nd Order Low Pass 3 Channel R = 47Ohms, 100Ohms, C = 23pF (Total) 8-XFDFN Exposed Pad
DataSheet
Type
Low Pass
Height
0.020" (0.50mm)
Values
R = 47Ohms, 100Ohms, C = 23pF (Total)
Packaging
Tape & Reel (TR)
Technology
RC (Pi)
Part Status
Obsolete
Applications
Data Lines for Mobile Devices
Filter Order
2nd
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount
ESD Protection
Yes
Package / Case
8-XFDFN Exposed Pad
Size / Dimension
0.067" L x 0.053" W (1.70mm x 1.35mm)
Attenuation Value
50dB @ 800MHz ~ 6GHz
Number of Channels
3
Base Product Number
IP426
Operating Temperature
-35°C ~ 85°C
Resistance - Channel (Ohms)
47, 100
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Height | 0.020" (0.50mm) |
| Values | R = 47Ohms, 100Ohms, C = 23pF (Total) |
| Packaging | Tape & Reel (TR) |
| Technology | RC (Pi) |
| Part Status | Obsolete |
| Applications | Data Lines for Mobile Devices |
| Filter Order | 2nd |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount |
| ESD Protection | Yes |
| Package / Case | 8-XFDFN Exposed Pad |
| Size / Dimension | 0.067" L x 0.053" W (1.70mm x 1.35mm) |
| Attenuation Value | 50dB @ 800MHz ~ 6GHz |
| Number of Channels | 3 |
| Base Product Number | IP426 |
| Operating Temperature | -35°C ~ 85°C |
| Resistance - Channel (Ohms) | 47, 100 |
