Step1: Product
NXP USA Inc. IP4033CX25/LF,135

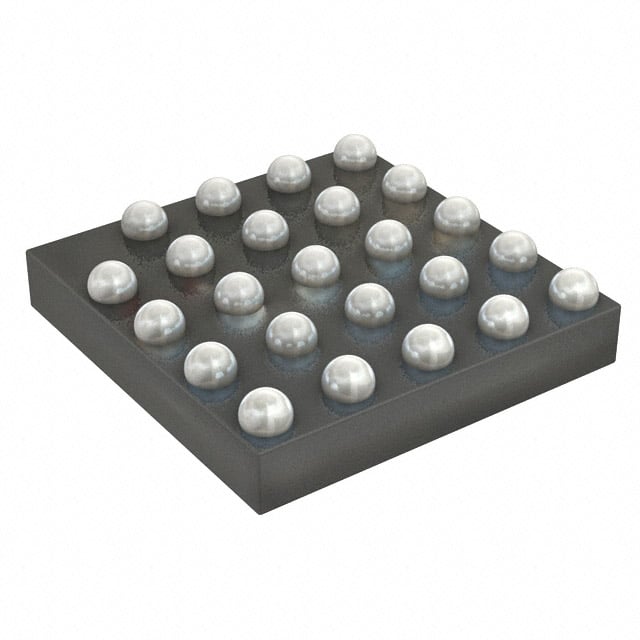

Image shown is a representation only
Manufacturer
Manufacturer No
IP4033CX25/LF,135
Package
25-WLCSP
Packaging
Tape & Reel (TR)
Description
FILTER RC(PI) 80 OHMS ESD SMD
Detailed Description
RC (Pi) EMI Filter 2nd Order Low Pass 10 Channel R = 80Ohms, C = 40pF 25-WLCSP
Type
Low Pass
Height
0.026" (0.65mm)
Values
R = 80Ohms, C = 40pF
Packaging
Tape & Reel (TR)
Technology
RC (Pi)
Part Status
Obsolete
Applications
Data Lines for Mobile Devices
Filter Order
2nd
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount
ESD Protection
Yes
Package / Case
25-WLCSP
Size / Dimension
0.095" L x 0.095" W (2.41mm x 2.41mm)
Number of Channels
10
Base Product Number
IP403
Operating Temperature
-45°C ~ 85°C
Resistance - Channel (Ohms)
80
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Height | 0.026" (0.65mm) |
| Values | R = 80Ohms, C = 40pF |
| Packaging | Tape & Reel (TR) |
| Technology | RC (Pi) |
| Part Status | Obsolete |
| Applications | Data Lines for Mobile Devices |
| Filter Order | 2nd |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount |
| ESD Protection | Yes |
| Package / Case | 25-WLCSP |
| Size / Dimension | 0.095" L x 0.095" W (2.41mm x 2.41mm) |
| Number of Channels | 10 |
| Base Product Number | IP403 |
| Operating Temperature | -45°C ~ 85°C |
| Resistance - Channel (Ohms) | 80 |
