Step1: Product
NXP USA Inc. BTS6201UJ

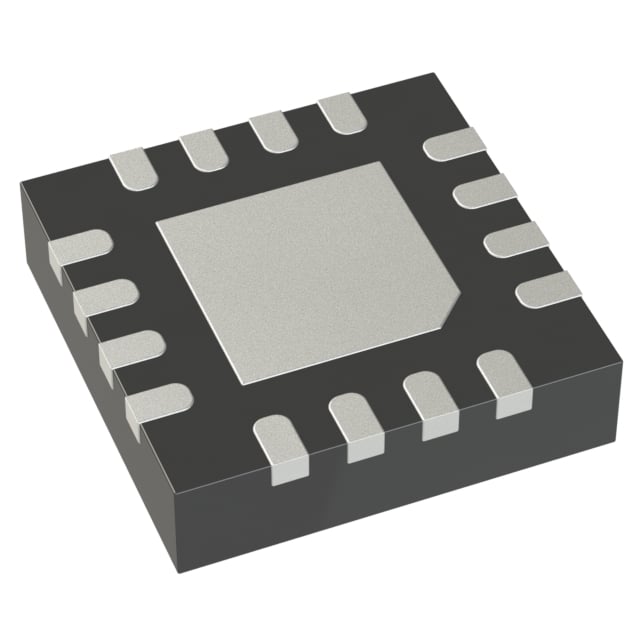

Image shown is a representation only
Manufacturer
Manufacturer No
BTS6201UJ
Quantity
15
Availability
In Stock
Package
16-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
BTS6201U
Detailed Description
RF Amplifier IC General Purpose 2.3GHz ~ 4.2GHz 16-HVQFN (3x3)
DataSheet
Gain
31.5dB
P1dB
27dBm
RF Type
General Purpose
Frequency
2.3GHz ~ 4.2GHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Last Time Buy
Manufacturer
NXP USA Inc.
Noise Figure
3.4dB
Mounting Type
Surface Mount
Package / Case
16-VFQFN Exposed Pad
Test Frequency
3.5GHz
Current - Supply
95mA
Voltage - Supply
4.75V ~ 5.25V
Supplier Device Package
16-HVQFN (3x3)
| Attribute | Value |
|---|---|
| Gain | 31.5dB |
| P1dB | 27dBm |
| RF Type | General Purpose |
| Frequency | 2.3GHz ~ 4.2GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Last Time Buy |
| Manufacturer | NXP USA Inc. |
| Noise Figure | 3.4dB |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Test Frequency | 3.5GHz |
| Current - Supply | 95mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Supplier Device Package | 16-HVQFN (3x3) |
