NXP USA Inc. ASL5015FHNZ

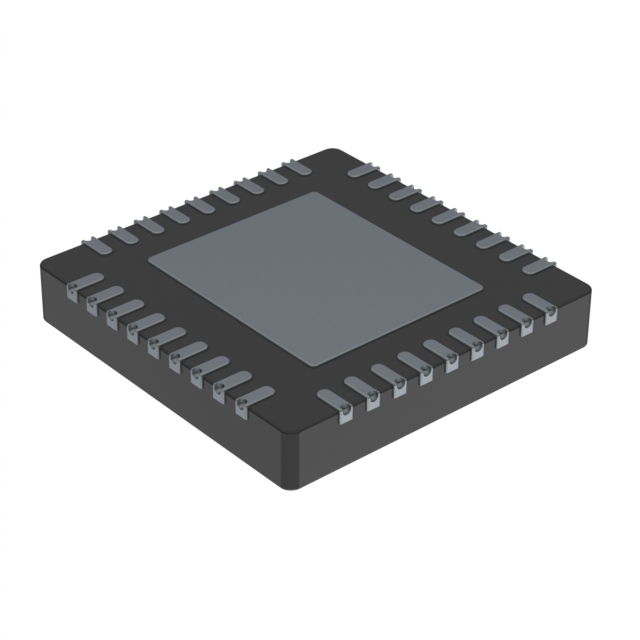

Image shown is a representation only
Manufacturer
Manufacturer No
ASL5015FHNZ
Package
36-VFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC LED DRV CTRL PWM 1.5A 36HVQFN
Detailed Description
LED Driver IC 12 Output DC DC Controller Switched Capacitor (Charge Pump) PWM Dimming 1.5A 36-HVQFN (6x6)
DataSheet
Type
DC DC Controller
Grade
Automotive
Dimming
PWM
Topology
Switched Capacitor (Charge Pump)
Frequency
200MHz
Packaging
Tape & Reel (TR)
Part Status
Active
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount, Wettable Flank
Package / Case
36-VFQFN Exposed Pad
Number of Outputs
12
Internal Switch(s)
Yes
Base Product Number
ASL5015
Operating Temperature
-40°C ~ 125°C (TA)
Voltage - Supply (Max)
5.5V
Voltage - Supply (Min)
4.5V
Supplier Device Package
36-HVQFN (6x6)
Current - Output / Channel
1.5A
| Attribute | Value |
|---|---|
| Type | DC DC Controller |
| Grade | Automotive |
| Dimming | PWM |
| Topology | Switched Capacitor (Charge Pump) |
| Frequency | 200MHz |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 36-VFQFN Exposed Pad |
| Number of Outputs | 12 |
| Internal Switch(s) | Yes |
| Base Product Number | ASL5015 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Supply (Min) | 4.5V |
| Supplier Device Package | 36-HVQFN (6x6) |
| Current - Output / Channel | 1.5A |
