Step1: Product
NXP USA Inc. PCA9955TW/S911118

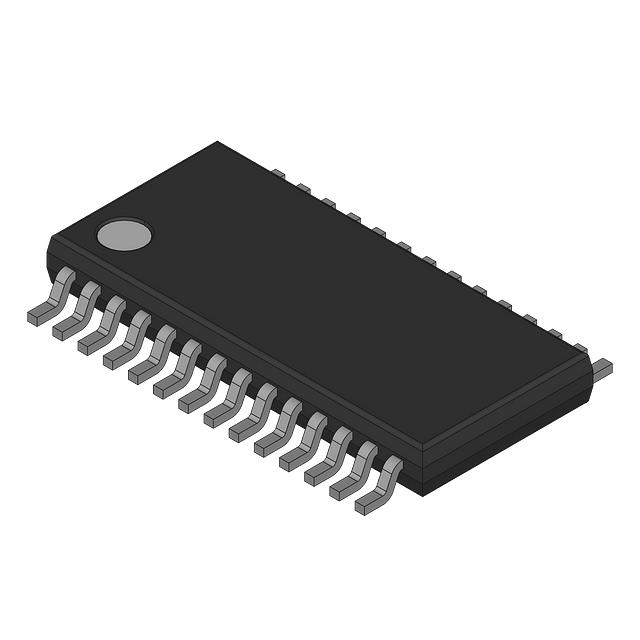

Image shown is a representation only
Manufacturer
Manufacturer No
PCA9955TW/S911118
Package
28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Packaging
Bulk
Description
IC LED DVR LINEAR 57MA 28HTSSOP
Detailed Description
LED Driver IC 16 Output Linear Constant Current Yes Dimming 57mA 28-HTSSOP
DataSheet
Type
Linear
Grade
Automotive
Dimming
Yes
Topology
Constant Current
Frequency
8MHz
Packaging
Bulk
Part Status
Active
Applications
Backlight
Manufacturer
NXP USA Inc.
Mounting Type
Surface Mount
Qualification
AEC-Q100
Package / Case
28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Voltage - Output
40V
Number of Outputs
16
Internal Switch(s)
Yes
Base Product Number
PCA9955
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Supply (Max)
5.5V
Voltage - Supply (Min)
3V
Supplier Device Package
28-HTSSOP
Current - Output / Channel
57mA
| Attribute | Value |
|---|---|
| Type | Linear |
| Grade | Automotive |
| Dimming | Yes |
| Topology | Constant Current |
| Frequency | 8MHz |
| Packaging | Bulk |
| Part Status | Active |
| Applications | Backlight |
| Manufacturer | NXP USA Inc. |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q100 |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Voltage - Output | 40V |
| Number of Outputs | 16 |
| Internal Switch(s) | Yes |
| Base Product Number | PCA9955 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Supply (Min) | 3V |
| Supplier Device Package | 28-HTSSOP |
| Current - Output / Channel | 57mA |
