Step1: Product
Nippon Pulse America, Inc. PF42T-96Q4

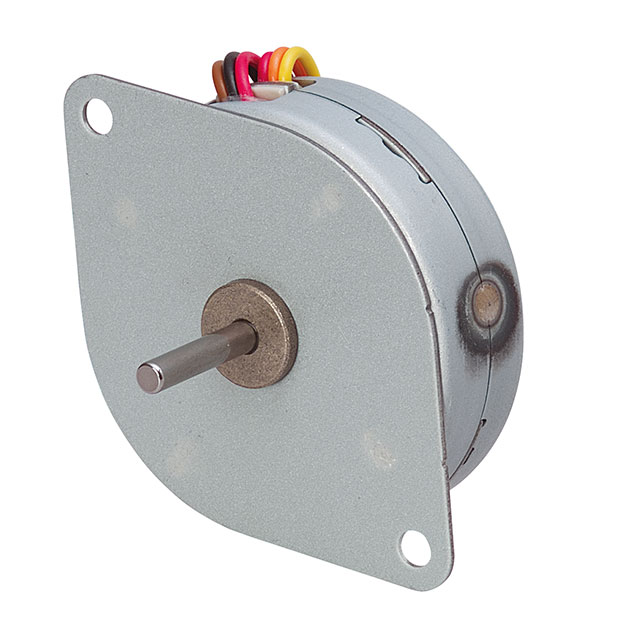

Image shown is a representation only
Manufacturer
Manufacturer No
PF42T-96Q4
Packaging
Retail Package
Description
Tin Can Step Motor 96 steps 5VDC
Detailed Description
Bipolar Stepper Motor Permanent Magnet Frame Size 96.0 Step 5VDC
DataSheet
Mfr
Nippon Pulse America, Inc.
Type
Permanent Magnet
Series
PF
Coil Type
Bipolar
Packaging
Retail Package
Step Angle
3.75°
Part Status
Active
Rotor Inertia
0.148gcm²
Coil Resistance
12 Ohms
Voltage - Rated
5VDC
Diameter - Shaft
0.118" (3.00mm)
Size / Dimension
Round - 1.650" Dia (42.00mm)
Termination Style
Wire Leads
Steps per Revolution
96.0
Operating Temperature
-10°C ~ 50°C
Length - Shaft and Bearing
0.626" (15.90mm)
Torque - Holding (oz-in / mNm)
6.94 / 49
| Attribute | Value |
|---|---|
| Mfr | Nippon Pulse America, Inc. |
| Type | Permanent Magnet |
| Series | PF |
| Coil Type | Bipolar |
| Packaging | Retail Package |
| Step Angle | 3.75° |
| Part Status | Active |
| Rotor Inertia | 0.148gcm² |
| Coil Resistance | 12 Ohms |
| Voltage - Rated | 5VDC |
| Diameter - Shaft | 0.118" (3.00mm) |
| Size / Dimension | Round - 1.650" Dia (42.00mm) |
| Termination Style | Wire Leads |
| Steps per Revolution | 96.0 |
| Operating Temperature | -10°C ~ 50°C |
| Length - Shaft and Bearing | 0.626" (15.90mm) |
| Torque - Holding (oz-in / mNm) | 6.94 / 49 |
