Step1: Product

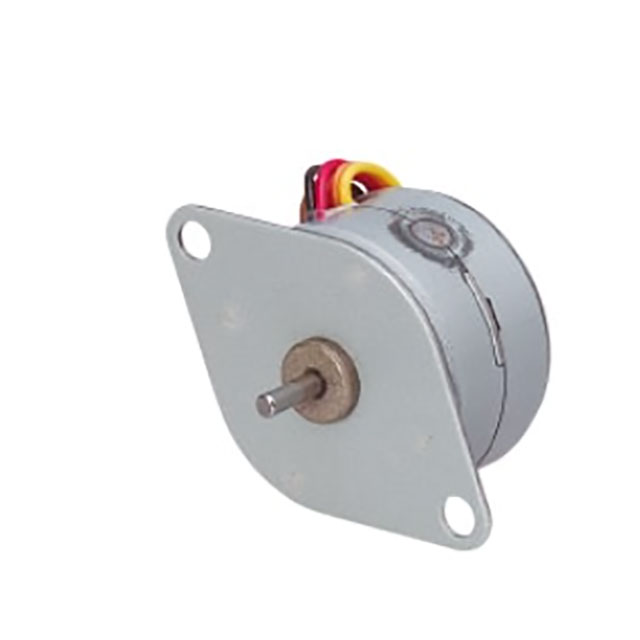

Nippon Pulse America, Inc. PF25-48Q4
Image shown is a representation only
Manufacturer
Manufacturer No
PF25-48Q4
Packaging
Retail Package
Description
Tin-can step motor 48 steps 5V
Detailed Description
Bipolar Stepper Motor Permanent Magnet Frame Size 48.0 Step 5VDC
DataSheet
Mfr
Nippon Pulse America, Inc.
Type
Permanent Magnet
Features
Round Shaft
Coil Type
Bipolar
Packaging
Retail Package
Step Angle
7.5°
Part Status
Active
Coil Resistance
15 Ohms
Voltage - Rated
5VDC
Diameter - Shaft
0.079" (2.00mm)
Size / Dimension
Round - 0.984" Dia (25.00mm)
Termination Style
Wire Leads
Steps per Revolution
48.0
Mounting Hole Spacing
1.260" (32.00mm)
Operating Temperature
-10°C ~ 50°C
Length - Shaft and Bearing
0.323" (8.20mm)
Torque - Holding (oz-in / mNm)
1.699 / 12
| Attribute | Value |
|---|---|
| Mfr | Nippon Pulse America, Inc. |
| Type | Permanent Magnet |
| Features | Round Shaft |
| Coil Type | Bipolar |
| Packaging | Retail Package |
| Step Angle | 7.5° |
| Part Status | Active |
| Coil Resistance | 15 Ohms |
| Voltage - Rated | 5VDC |
| Diameter - Shaft | 0.079" (2.00mm) |
| Size / Dimension | Round - 0.984" Dia (25.00mm) |
| Termination Style | Wire Leads |
| Steps per Revolution | 48.0 |
| Mounting Hole Spacing | 1.260" (32.00mm) |
| Operating Temperature | -10°C ~ 50°C |
| Length - Shaft and Bearing | 0.323" (8.20mm) |
| Torque - Holding (oz-in / mNm) | 1.699 / 12 |
