Step1: Product
Nidec Components SH-7070MB

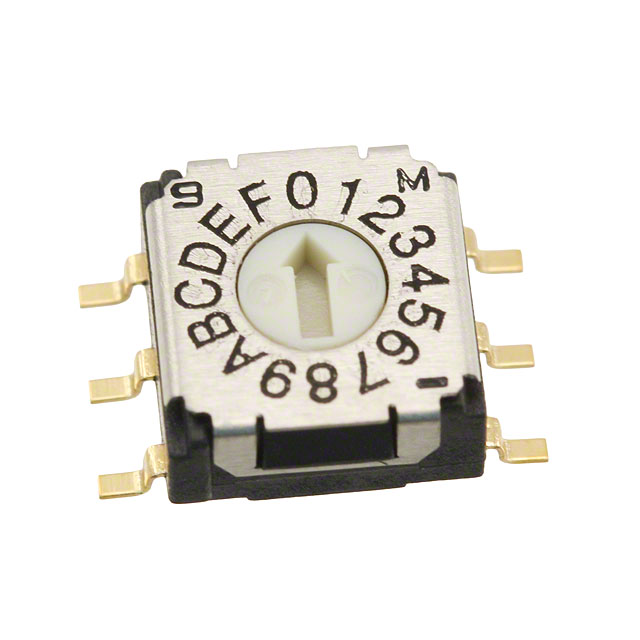

Image shown is a representation only
Manufacturer
Manufacturer No
SH-7070MB
Packaging
Tube
Description
SW DIP ROTARY HEX COMP 100MA 5V
Detailed Description
Dip Switch Hexadecimal Complement 16 Position Surface Mount Rotary for Tool Actuator 100mA 5VDC
Datasheet
Pitch
0.100" (2.54mm), Full
Length
0.287" (7.30mm)
Series
SH-7000
Circuit
Hexadecimal Complement
Washable
No
Packaging
Tube
Manufacturer
Nidec Components
Actuator Type
Rotary for Tool
Body Material
Polyphenylene Sulfide (PPS)
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
5VDC
Electrical Life
10,000 Steps
Mechanical Life
10,000 Steps
Contact Material
Copper Alloy
Termination Style
Gull Wing
Height Above Board
0.148" (3.75mm)
Number of Positions
16
Current Rating (Amps)
100mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.287" (7.30mm) |
| Series | SH-7000 |
| Circuit | Hexadecimal Complement |
| Washable | No |
| Packaging | Tube |
| Manufacturer | Nidec Components |
| Actuator Type | Rotary for Tool |
| Body Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 5VDC |
| Electrical Life | 10,000 Steps |
| Mechanical Life | 10,000 Steps |
| Contact Material | Copper Alloy |
| Termination Style | Gull Wing |
| Height Above Board | 0.148" (3.75mm) |
| Number of Positions | 16 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -40°C ~ 85°C |
