Step1: Product

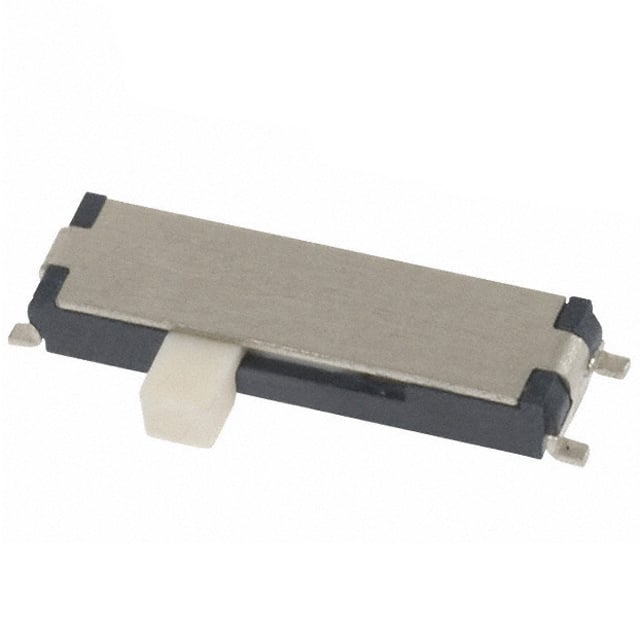

Nidec Components CUS-13TB
Image shown is a representation only
Manufacturer
Manufacturer No
CUS-13TB
Quantity
2445
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH SLIDE SP3T 300MA 4V
Detailed Description
Slide Switch SP3T Surface Mount, Right Angle
DataSheet
Series
CUS
Circuit
SP3T
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Nidec Components
Actuator Type
Standard
Mounting Type
Surface Mount, Right Angle
Switch Travel
1.50mm
Contact Finish
Gold
Contact Timing
Non-Shorting (BBM)
Actuator Length
1.50mm
Electrical Life
10,000 Cycles
Operating Force
153/204gf
Switch Function
On-On-On
Contact Material
Copper Alloy
Actuator Material
Polyamide (PA), Nylon
Termination Style
Gull Wing
Base Product Number
CUS-13T
Voltage Rating - DC
4 V
Current Rating (Amps)
300mA (DC)
Operating Temperature
-20°C ~ 70°C
| Attribute | Value |
|---|---|
| Series | CUS |
| Circuit | SP3T |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Nidec Components |
| Actuator Type | Standard |
| Mounting Type | Surface Mount, Right Angle |
| Switch Travel | 1.50mm |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 1.50mm |
| Electrical Life | 10,000 Cycles |
| Operating Force | 153/204gf |
| Switch Function | On-On-On |
| Contact Material | Copper Alloy |
| Actuator Material | Polyamide (PA), Nylon |
| Termination Style | Gull Wing |
| Base Product Number | CUS-13T |
| Voltage Rating - DC | 4 V |
| Current Rating (Amps) | 300mA (DC) |
| Operating Temperature | -20°C ~ 70°C |
