Step1: Product

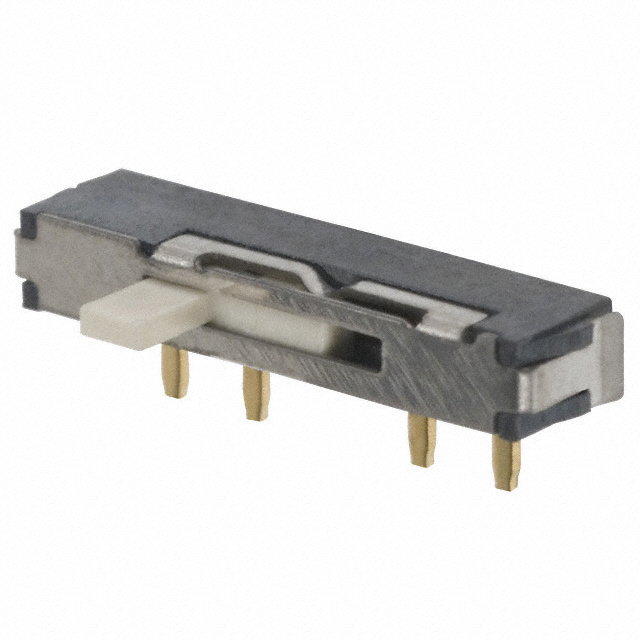

Nidec Components CSS-1310MC
Image shown is a representation only
Manufacturer
Manufacturer No
CSS-1310MC
Quantity
114
Availability
In Stock
Packaging
Tube
Description
SWITCH SLIDE SP3T 100MA 12V
Detailed Description
Slide Switch SP3T Through Hole, Right Angle
DataSheet
Series
CSS
Circuit
SP3T
Packaging
Tube
Part Status
Active
Manufacturer
Nidec Components
Actuator Type
Standard
Mounting Type
Through Hole, Right Angle
Switch Travel
2.00mm
Contact Finish
Gold
Contact Timing
Non-Shorting (BBM)
Actuator Length
2.00mm
Electrical Life
10,000 Cycles
Operating Force
102 ~ 357gf
Switch Function
On-On-On
Contact Material
Copper Alloy
Actuator Material
Liquid Crystal Polymer (LCP)
Termination Style
PC Pin
Base Product Number
CSS-1310
Voltage Rating - DC
12 V
Current Rating (Amps)
100mA (DC)
Operating Temperature
-20°C ~ 70°C
| Attribute | Value |
|---|---|
| Series | CSS |
| Circuit | SP3T |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | Nidec Components |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Switch Travel | 2.00mm |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 2.00mm |
| Electrical Life | 10,000 Cycles |
| Operating Force | 102 ~ 357gf |
| Switch Function | On-On-On |
| Contact Material | Copper Alloy |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Termination Style | PC Pin |
| Base Product Number | CSS-1310 |
| Voltage Rating - DC | 12 V |
| Current Rating (Amps) | 100mA (DC) |
| Operating Temperature | -20°C ~ 70°C |
