Step1: Product
Nidec Components CL-SB-13C-12

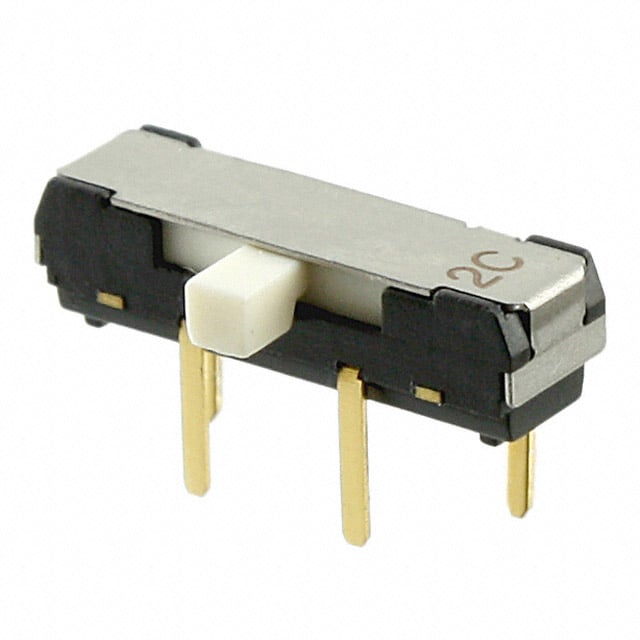

Image shown is a representation only
Manufacturer
Manufacturer No
CL-SB-13C-12
Quantity
50
Availability
In Stock
Packaging
Bulk
Description
SWITCH SLIDE SP3T 200MA 12V
Detailed Description
Slide Switch SP3T Through Hole, Right Angle
DataSheet
Series
CL-SB
Circuit
SP3T
Packaging
Bulk
Part Status
Active
Manufacturer
Nidec Components
Actuator Type
Standard
Mounting Type
Through Hole, Right Angle
Switch Travel
2.00mm
Contact Finish
Gold
Contact Timing
Non-Shorting (BBM)
Actuator Length
2.00mm
Electrical Life
10,000 Cycles
Operating Force
160/260gf
Switch Function
On-On-On
Contact Material
Copper
Actuator Material
Polyamide (PA), Nylon
Termination Style
PC Pin
Base Product Number
CL-SB-13
Voltage Rating - DC
12 V
Current Rating (Amps)
200mA (DC)
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | CL-SB |
| Circuit | SP3T |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | Nidec Components |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Switch Travel | 2.00mm |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 2.00mm |
| Electrical Life | 10,000 Cycles |
| Operating Force | 160/260gf |
| Switch Function | On-On-On |
| Contact Material | Copper |
| Actuator Material | Polyamide (PA), Nylon |
| Termination Style | PC Pin |
| Base Product Number | CL-SB-13 |
| Voltage Rating - DC | 12 V |
| Current Rating (Amps) | 200mA (DC) |
| Operating Temperature | -40°C ~ 85°C |
