Step1: Product

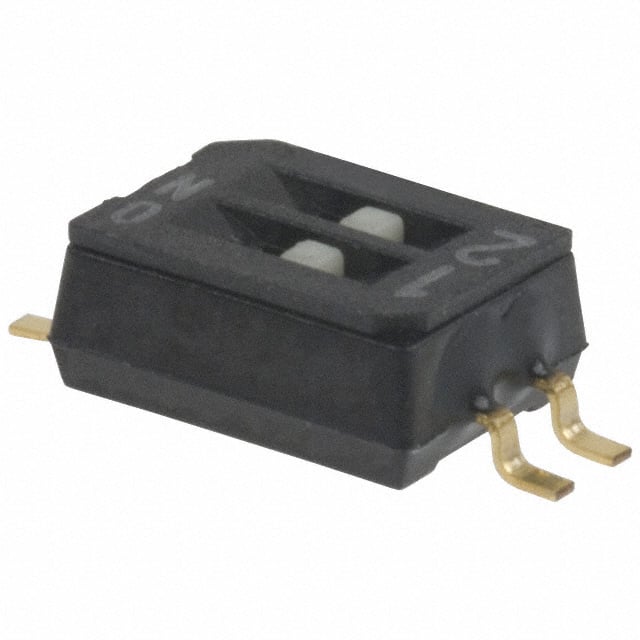

Nidec Components CHS-02TB
Image shown is a representation only
Manufacturer
Manufacturer No
CHS-02TB
Quantity
443
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SWITCH SLIDE DIP SPST 0.1A 6V
Detailed Description
Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
DataSheet
Pitch
0.050" (1.27mm), Half
Length
0.161" (4.10mm)
Series
CHS
Circuit
SPST
Features
Tape Seal
Washable
Yes
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Nidec Components
Actuator Type
Slide (Standard)
Body Material
Polyphenylene Sulfide (PPS)
Mounting Type
Surface Mount
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
6VDC
Electrical Life
2,000 Cycles
Contact Material
Copper Alloy
Termination Style
Gull Wing
Height Above Board
0.098" (2.50mm)
Base Product Number
CHS-02T
Number of Positions
2
Current Rating (Amps)
100mA
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.050" (1.27mm), Half |
| Length | 0.161" (4.10mm) |
| Series | CHS |
| Circuit | SPST |
| Features | Tape Seal |
| Washable | Yes |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Nidec Components |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Surface Mount |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 6VDC |
| Electrical Life | 2,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | Gull Wing |
| Height Above Board | 0.098" (2.50mm) |
| Base Product Number | CHS-02T |
| Number of Positions | 2 |
| Current Rating (Amps) | 100mA |
| Operating Temperature | -40°C ~ 85°C |
