Step1: Product

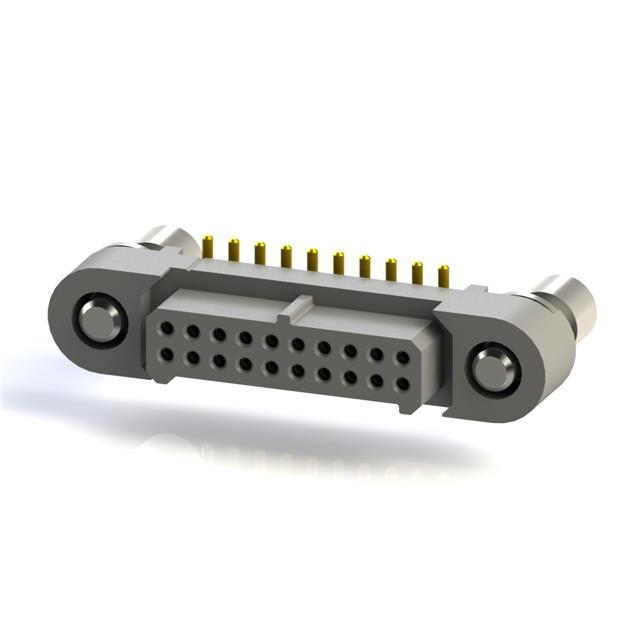

Nicomatic A222T20V16
Image shown is a representation only
Manufacturer
Manufacturer No
A222T20V16
Packaging
Bulk
Description
FEM. 20POS STRAIGHT SMT 1.00MM
Detailed Description
20 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
Datasheet
Mfr
Nicomatic
Style
Board to Board
Features
Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Packaging
Bulk
Termination
Solder
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
600VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.157" (4.00mm)
Base Product Number
A222T20V
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
20
Row Spacing - Mating
0.039" (1.00mm)
Contact Finish - Post
Gold
Current Rating (Amps)
2.5A
Operating Temperature
-65°C ~ 200°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
5.90µin (0.150µm)
Contact Finish Thickness - Mating
5.90µin (0.150µm)
| Attribute | Value |
|---|---|
| Mfr | Nicomatic |
| Style | Board to Board |
| Features | Jackscrews, Mating Flange, Mounting Flange, Polarizing Key |
| Packaging | Bulk |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 600VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.157" (4.00mm) |
| Base Product Number | A222T20V |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 20 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 2.5A |
| Operating Temperature | -65°C ~ 200°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 5.90µin (0.150µm) |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
