Step1: Product

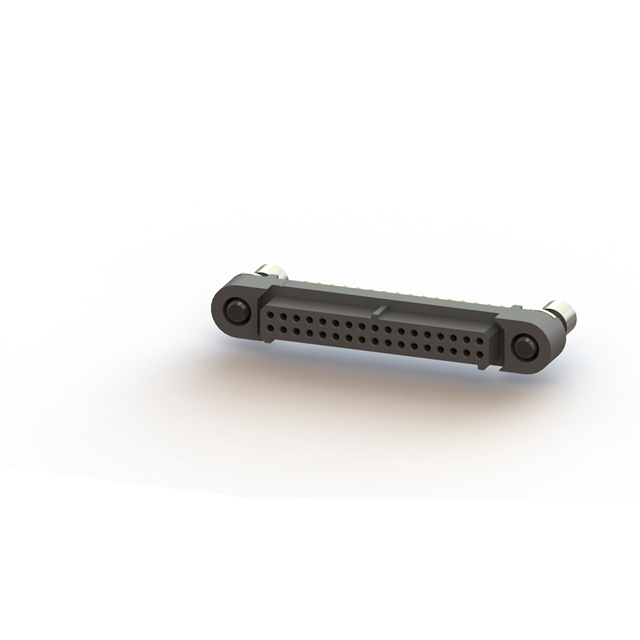

Nicomatic A222Y34V16
Image shown is a representation only
Manufacturer
Manufacturer No
A222Y34V16
Packaging
Bulk
Description
FEM. 34POS STRAIGHT TRGH 1.27MM
Detailed Description
34 Position Receptacle Connector 0.039" (1.00mm) Through Hole Gold
DataSheet
Mfr
Nicomatic
Style
Board to Board
Features
Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Screw Lock
Number of Rows
2
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
600VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.173" (4.40mm)
Base Product Number
A222Y34
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
34
Row Spacing - Mating
0.039" (1.00mm)
Contact Finish - Post
Gold
Contact Length - Post
0.122" (3.10mm)
Current Rating (Amps)
2.5A
Operating Temperature
-65°C ~ 200°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
5.90µin (0.150µm)
Contact Finish Thickness - Mating
5.90µin (0.150µm)
| Attribute | Value |
|---|---|
| Mfr | Nicomatic |
| Style | Board to Board |
| Features | Jackscrews, Mating Flange, Mounting Flange, Polarizing Key |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Screw Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 600VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.173" (4.40mm) |
| Base Product Number | A222Y34 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 34 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.122" (3.10mm) |
| Current Rating (Amps) | 2.5A |
| Operating Temperature | -65°C ~ 200°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 5.90µin (0.150µm) |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
