Step1: Product
NextGen Components SMF050AL00S0FE

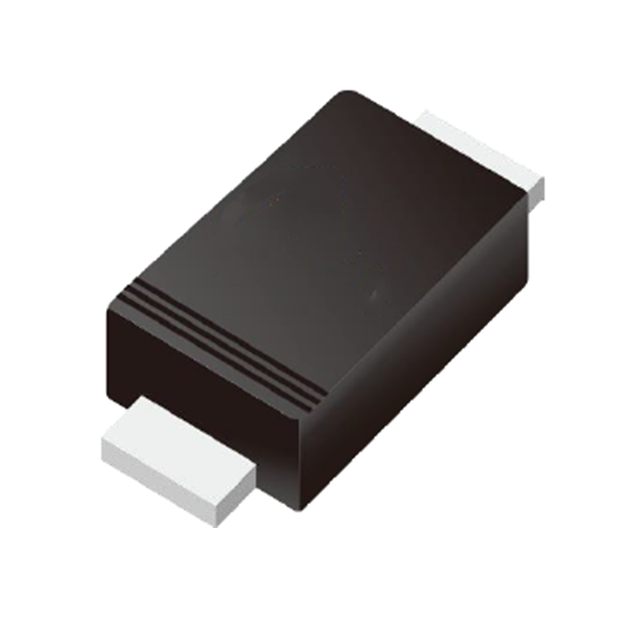

Image shown is a representation only
Manufacturer
Manufacturer No
SMF050AL00S0FE
Package
SOD-123F
Packaging
Tape & Reel (TR)
Description
TVS Diodes 5V Uni. Channel SOD1
Detailed Description
9.2V Clamp 21.74A Ipp Tvs Diode Surface Mount SMF/SOD-123FL
DataSheet
Mfr
NextGen Components
Type
Zener
Series
SMF
Packaging
Tape & Reel (TR)
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
SOD-123F
Power - Peak Pulse
200W
Operating Temperature
-55°C ~ 150°C (TJ)
Power Line Protection
No
Supplier Device Package
SMF/SOD-123FL
Unidirectional Channels
1
Voltage - Breakdown (Min)
6.4V
Voltage - Clamping (Max) @ Ipp
9.2V
Voltage - Reverse Standoff (Typ)
5V
Current - Peak Pulse (10/1000µs)
21.74A
| Attribute | Value |
|---|---|
| Mfr | NextGen Components |
| Type | Zener |
| Series | SMF |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Power - Peak Pulse | 200W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power Line Protection | No |
| Supplier Device Package | SMF/SOD-123FL |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 9.2V |
| Voltage - Reverse Standoff (Typ) | 5V |
| Current - Peak Pulse (10/1000µs) | 21.74A |
