Step1: Product
NextGen Components SM8S40AL00S040

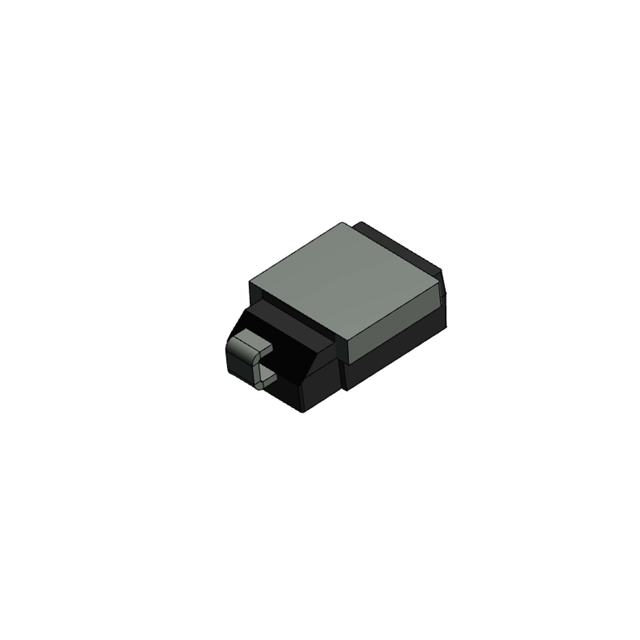

Image shown is a representation only
Manufacturer
Manufacturer No
SM8S40AL00S040
Package
DO-218AB
Packaging
Tape & Reel (TR)
Description
Tvs Diode Uni 40V 64.5VC DO218AB
Detailed Description
64.5V Clamp 102A Ipp Tvs Diode Surface Mount DO-218AB (SMCJ)
DataSheet
Mfr
NextGen Components
Type
Zener
Grade
Automotive
Series
SM8S-L
Packaging
Tape & Reel (TR)
Part Status
Active
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
DO-218AB
Power - Peak Pulse
6600W (6.6kW)
Operating Temperature
-55°C ~ 175°C (TJ)
Power Line Protection
No
Supplier Device Package
DO-218AB (SMCJ)
Unidirectional Channels
1
Voltage - Breakdown (Min)
44.4V
Voltage - Clamping (Max) @ Ipp
64.5V
Voltage - Reverse Standoff (Typ)
40V
Current - Peak Pulse (10/1000µs)
102A
| Attribute | Value |
|---|---|
| Mfr | NextGen Components |
| Type | Zener |
| Grade | Automotive |
| Series | SM8S-L |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | DO-218AB |
| Power - Peak Pulse | 6600W (6.6kW) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Power Line Protection | No |
| Supplier Device Package | DO-218AB (SMCJ) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 44.4V |
| Voltage - Clamping (Max) @ Ipp | 64.5V |
| Voltage - Reverse Standoff (Typ) | 40V |
| Current - Peak Pulse (10/1000µs) | 102A |
