Step1: Product
Murata Power Solutions Inc. 80306C

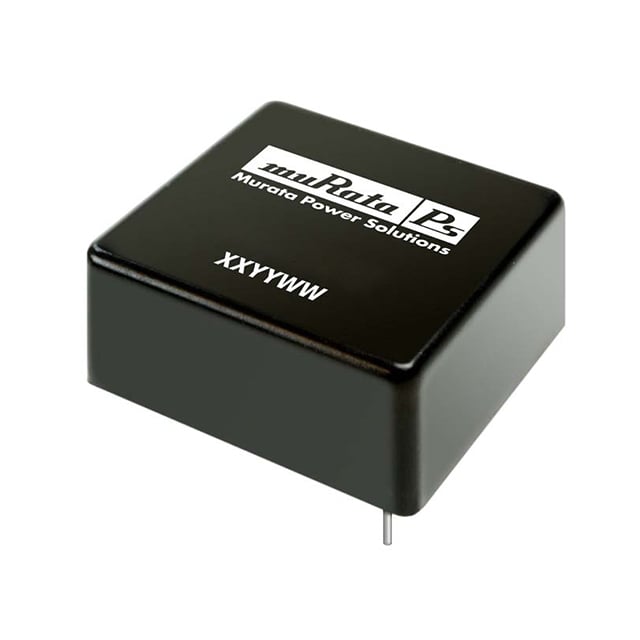

Image shown is a representation only
Manufacturer
Manufacturer No
80306C
Package
Radial, Horizontal, Corner Terminals
Packaging
Tube
Description
FIXED IND 220UH 3A 100 MOHM TH
Detailed Description
220 µH Unshielded Toroidal Inductor 3 A 100mOhm Max Radial, Horizontal, Corner Terminals
DataSheet
Mfr
Murata Power Solutions Inc.
Type
Toroidal
Series
803
Packaging
Tube
Shielding
Unshielded
Tolerance
±10%
Inductance
220 µH
Part Status
Obsolete
Mounting Type
Through Hole
Package / Case
Radial, Horizontal, Corner Terminals
Size / Dimension
1.114" L x 1.114" W (28.30mm x 28.30mm)
Base Product Number
803
DC Resistance (DCR)
100mOhm Max
Current Rating (Amps)
3 A
Height - Seated (Max)
0.583" (14.80mm)
Operating Temperature
0°C ~ 70°C
| Attribute | Value |
|---|---|
| Mfr | Murata Power Solutions Inc. |
| Type | Toroidal |
| Series | 803 |
| Packaging | Tube |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 220 µH |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, Corner Terminals |
| Size / Dimension | 1.114" L x 1.114" W (28.30mm x 28.30mm) |
| Base Product Number | 803 |
| DC Resistance (DCR) | 100mOhm Max |
| Current Rating (Amps) | 3 A |
| Height - Seated (Max) | 0.583" (14.80mm) |
| Operating Temperature | 0°C ~ 70°C |
