Step1: Product
Murata Power Solutions Inc. 82103C
Image shown is a representation only
Manufacturer
Manufacturer No
82103C
Quantity
1735
Availability
In Stock
Package
1210 (3225 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 10UH 500MA 400 MOHM
Detailed Description

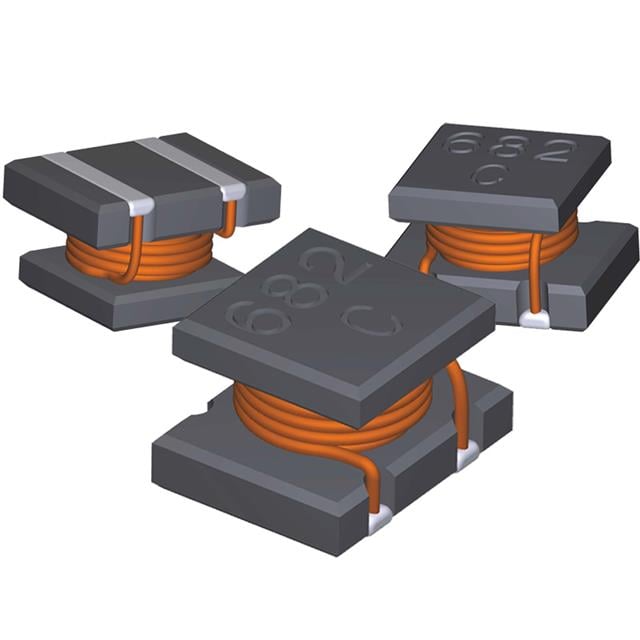

10 µH Unshielded Wirewound Inductor 500 mA 400mOhm Max 1210 (3225 Metric)
DataSheet
Mfr
Murata Power Solutions Inc.
Type
Wirewound
Series
8200
Q @ Freq
35 @ 1MHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Unshielded
Tolerance
±10%
Inductance
10 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
1210 (3225 Metric)
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Base Product Number
82
DC Resistance (DCR)
400mOhm Max
Current Rating (Amps)
500 mA
Height - Seated (Max)
0.091" (2.30mm)
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
1210
Frequency - Self Resonant
38MHz
Inductance Frequency - Test
10 kHz
| Attribute | Value |
|---|---|
| Mfr | Murata Power Solutions Inc. |
| Type | Wirewound |
| Series | 8200 |
| Q @ Freq | 35 @ 1MHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 10 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Base Product Number | 82 |
| DC Resistance (DCR) | 400mOhm Max |
| Current Rating (Amps) | 500 mA |
| Height - Seated (Max) | 0.091" (2.30mm) |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 1210 |
| Frequency - Self Resonant | 38MHz |
| Inductance Frequency - Test | 10 kHz |
