Step1: Product

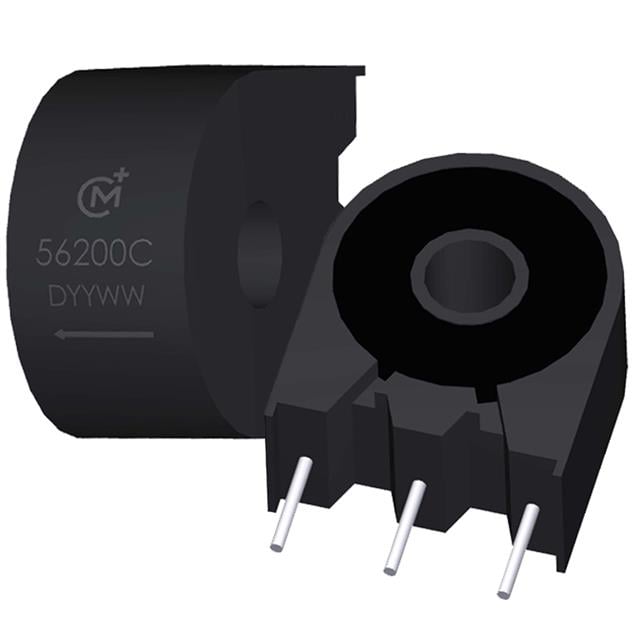

Murata Power Solutions Inc. 56200C
Image shown is a representation only
Manufacturer
Manufacturer No
56200C
Quantity
19
Availability
In Stock
Packaging
Tube
Description
CURR SENSE XFMR 10A T/H
Detailed Description
10 A Current Sense Transformer 20kHz ~ 200kHz 1.87mOhm Primary, 2.81mOhm Secondary 72 mH Through Hole
DataSheet
Type
Non-Invasive (Solid Core)
Series
5600
Weight
0.013 lb (5.70 g)
Packaging
Tube
Inductance
72 mH
Part Status
Active
Manufacturer
Murata Power Solutions Inc.
Current Ratio
200:1
Mounting Type
Through Hole
Frequency Range
20kHz ~ 200kHz
Size / Dimension
0.661" L x 0.350" W (16.79mm x 8.89mm)
Termination Style
PC Pin
Base Product Number
56
DC Resistance (DCR)
1.87mOhm Primary, 2.81mOhm Secondary
Current Rating (Amps)
10 A
Height - Seated (Max)
0.795" (20.19mm)
| Attribute | Value |
|---|---|
| Type | Non-Invasive (Solid Core) |
| Series | 5600 |
| Weight | 0.013 lb (5.70 g) |
| Packaging | Tube |
| Inductance | 72 mH |
| Part Status | Active |
| Manufacturer | Murata Power Solutions Inc. |
| Current Ratio | 200:1 |
| Mounting Type | Through Hole |
| Frequency Range | 20kHz ~ 200kHz |
| Size / Dimension | 0.661" L x 0.350" W (16.79mm x 8.89mm) |
| Termination Style | PC Pin |
| Base Product Number | 56 |
| DC Resistance (DCR) | 1.87mOhm Primary, 2.81mOhm Secondary |
| Current Rating (Amps) | 10 A |
| Height - Seated (Max) | 0.795" (20.19mm) |
