Murata Power Solutions Inc. 55100C

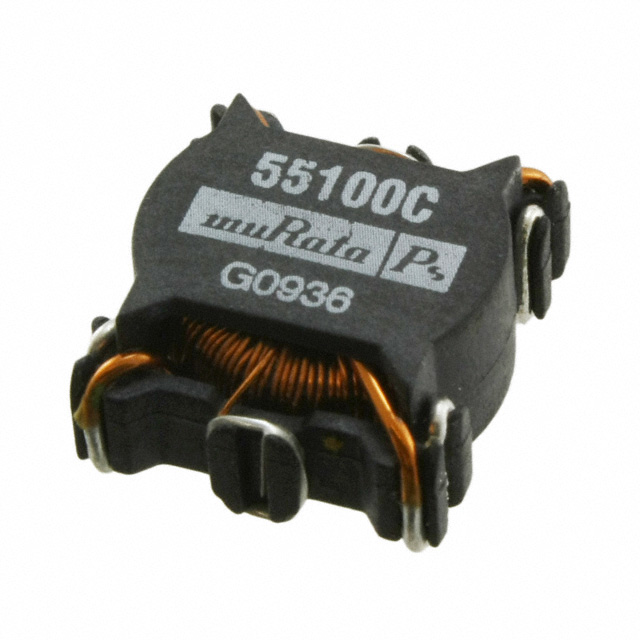

Image shown is a representation only
Manufacturer
Manufacturer No
55100C
Packaging
Tube
Description
CURR SENSE XFMR 1:1:100 15A SMD
Detailed Description
1:1:100 Current Sense Transformer 50kHz ~ 500kHz 2.3mOhm Primary, 850mOhm Secondary 14.8 mH Surface Mount
DataSheet
Type
Invasive
Series
5500
Weight
0.06 oz (1.71 g)
Packaging
Tube
Inductance
14.8 mH
Part Status
Obsolete
Manufacturer
Murata Power Solutions Inc.
Mounting Type
Surface Mount
Frequency Range
50kHz ~ 500kHz
Size / Dimension
0.496" L x 0.575" W (12.60mm x 14.60mm)
Base Product Number
55
DC Resistance (DCR)
2.3mOhm Primary, 850mOhm Secondary
Height - Seated (Max)
0.280" (7.10mm)
Turns Ratio - Primary:Secondary
1:1:100
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | 5500 |
| Weight | 0.06 oz (1.71 g) |
| Packaging | Tube |
| Inductance | 14.8 mH |
| Part Status | Obsolete |
| Manufacturer | Murata Power Solutions Inc. |
| Mounting Type | Surface Mount |
| Frequency Range | 50kHz ~ 500kHz |
| Size / Dimension | 0.496" L x 0.575" W (12.60mm x 14.60mm) |
| Base Product Number | 55 |
| DC Resistance (DCR) | 2.3mOhm Primary, 850mOhm Secondary |
| Height - Seated (Max) | 0.280" (7.10mm) |
| Turns Ratio - Primary:Secondary | 1:1:100 |
