Step1: Product
Murata Power Solutions Inc. 49331SC

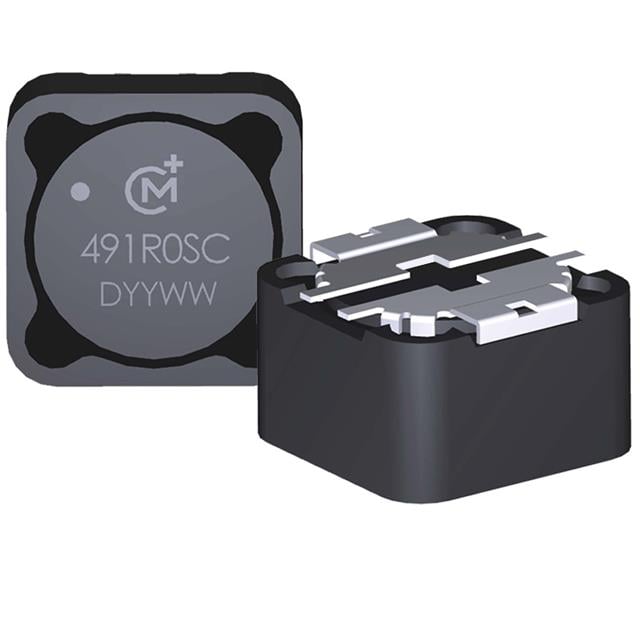

Image shown is a representation only
Manufacturer
Manufacturer No
49331SC
Package
Nonstandard, 4 Lead
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
FIXED IND 330UH 900MA 550 MOHM
Detailed Description
330 µH Shielded Wirewound Inductor 900 mA 550mOhm Max Nonstandard, 4 Lead
DataSheet
Mfr
Murata Power Solutions Inc.
Type
Wirewound
Series
4900S
Q @ Freq
33 @ 800kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Tolerance
±20%
Inductance
330 µH
Part Status
Last Time Buy
Mounting Type
Surface Mount
Package / Case
Nonstandard, 4 Lead
Size / Dimension
0.480" L x 0.480" W (12.20mm x 12.20mm)
Base Product Number
49
DC Resistance (DCR)
550mOhm Max
Current Rating (Amps)
900 mA
Height - Seated (Max)
0.315" (8.00mm)
Operating Temperature
-40°C ~ 85°C
Frequency - Self Resonant
4MHz
Inductance Frequency - Test
10 kHz
| Attribute | Value |
|---|---|
| Mfr | Murata Power Solutions Inc. |
| Type | Wirewound |
| Series | 4900S |
| Q @ Freq | 33 @ 800kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 330 µH |
| Part Status | Last Time Buy |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 4 Lead |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Base Product Number | 49 |
| DC Resistance (DCR) | 550mOhm Max |
| Current Rating (Amps) | 900 mA |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Frequency - Self Resonant | 4MHz |
| Inductance Frequency - Test | 10 kHz |
