Step1: Product
Murata Power Solutions Inc. 30800AC

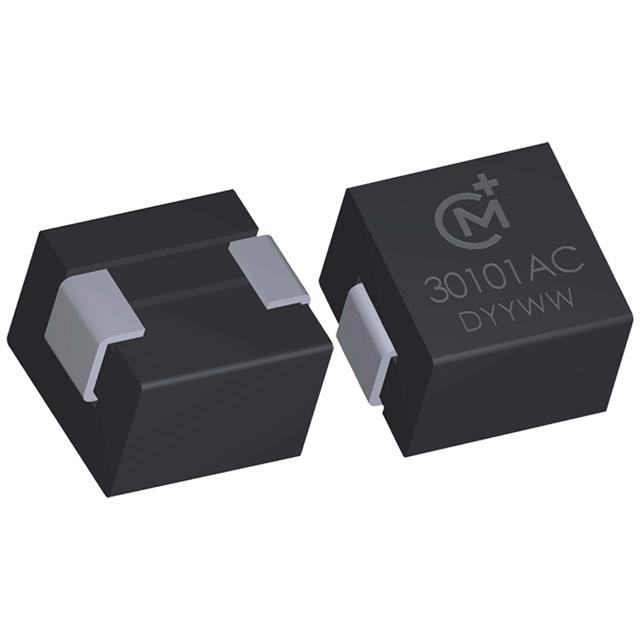

Image shown is a representation only
Manufacturer
Manufacturer No
30800AC
Package
2-SMD
Packaging
Tape & Reel (TR)
Description
FIXED IND 80NH 37A 0.35 MOHM SMD
Detailed Description
80 nH Shielded Wirewound Inductor 37 A 0.35mOhm Max 2-SMD
DataSheet
Mfr
Murata Power Solutions Inc.
Type
Wirewound
Series
3000A
Packaging
Tape & Reel (TR)
Shielding
Shielded
Tolerance
±20%
Inductance
80 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
2-SMD
Size / Dimension
0.276" L x 0.276" W (7.00mm x 7.00mm)
Base Product Number
30
DC Resistance (DCR)
0.35mOhm Max
Current Rating (Amps)
37 A
Height - Seated (Max)
0.195" (4.96mm)
Operating Temperature
-40°C ~ 130°C
Current - Saturation (Isat)
47A
Inductance Frequency - Test
1 MHz
| Attribute | Value |
|---|---|
| Mfr | Murata Power Solutions Inc. |
| Type | Wirewound |
| Series | 3000A |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 80 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Base Product Number | 30 |
| DC Resistance (DCR) | 0.35mOhm Max |
| Current Rating (Amps) | 37 A |
| Height - Seated (Max) | 0.195" (4.96mm) |
| Operating Temperature | -40°C ~ 130°C |
| Current - Saturation (Isat) | 47A |
| Inductance Frequency - Test | 1 MHz |
