Step1: Product
Murata Power Solutions Inc. 18153C

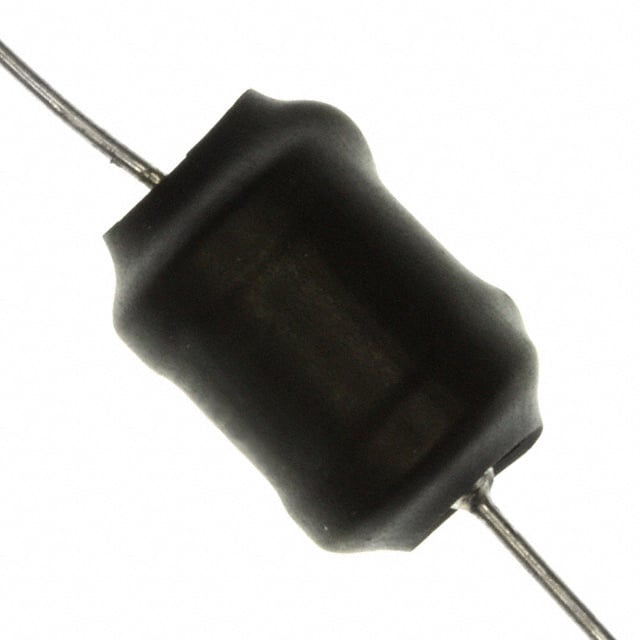

Image shown is a representation only
Manufacturer
Manufacturer No
18153C
Package
Axial
Packaging
Box
Description
FIXED IND 15UH 3A 18 MOHM TH
Detailed Description
15 µH Unshielded Wirewound Inductor 3 A 18mOhm Max Axial
DataSheet
Mfr
Murata Power Solutions Inc.
Type
Wirewound
Series
1800
Q @ Freq
55 @ 500kHz
Packaging
Box
Shielding
Unshielded
Tolerance
±10%
Inductance
15 µH
Part Status
Obsolete
Mounting Type
Through Hole
Package / Case
Axial
Size / Dimension
0.539" Dia x 0.719" L (13.70mm x 18.25mm)
Base Product Number
18
DC Resistance (DCR)
18mOhm Max
Current Rating (Amps)
3 A
Operating Temperature
0°C ~ 70°C
Frequency - Self Resonant
15.9MHz
Inductance Frequency - Test
500 kHz
| Attribute | Value |
|---|---|
| Mfr | Murata Power Solutions Inc. |
| Type | Wirewound |
| Series | 1800 |
| Q @ Freq | 55 @ 500kHz |
| Packaging | Box |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 15 µH |
| Part Status | Obsolete |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Size / Dimension | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) |
| Base Product Number | 18 |
| DC Resistance (DCR) | 18mOhm Max |
| Current Rating (Amps) | 3 A |
| Operating Temperature | 0°C ~ 70°C |
| Frequency - Self Resonant | 15.9MHz |
| Inductance Frequency - Test | 500 kHz |
