Molex WG92PR9SY-1

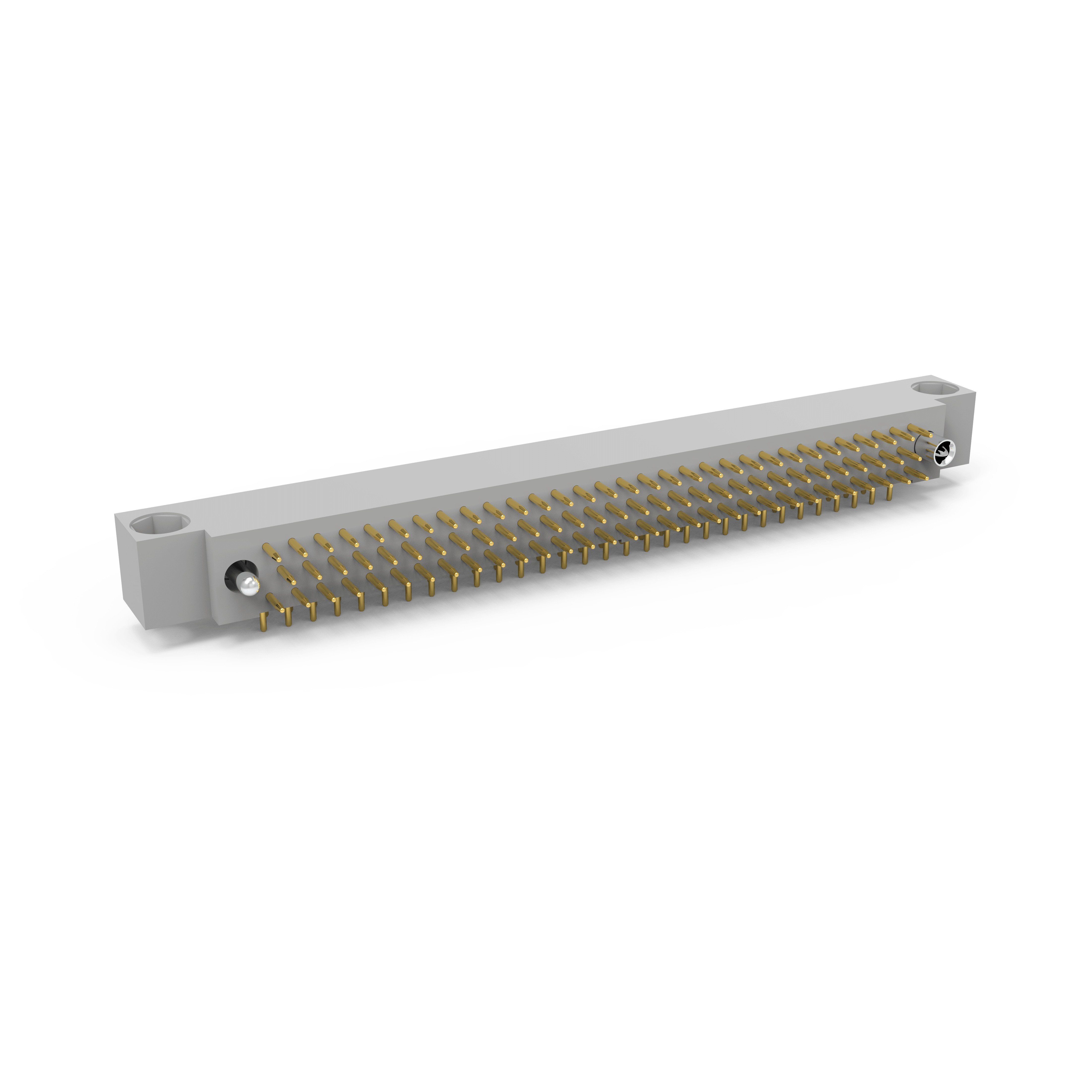

Image shown is a representation only
Manufacturer
Manufacturer No
WG92PR9SY-1
Packaging
Bulk
Description
WG92PR9SY-1
Detailed Description
Connector Header Through Hole, Right Angle 92 position 0.100" (2.54mm)
DataSheet
Mfr
Molex
Style
Board to Board
Series
W
Features
Board Guide, Polarizing Key
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Plug
Fastening Type
Push-Pull
Number of Rows
3
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
1000V
Contact Material
Copper Alloy
Insulation Color
Gray
Insulation Height
0.350" (8.89mm)
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Number of Positions
92
Row Spacing - Mating
0.125" (3.18mm)
Contact Length - Post
0.140" (3.56mm)
Current Rating (Amps)
5A
Operating Temperature
-65°C ~ 125°C
Contact Finish - Mating
Gold
Contact Length - Mating
0.150" (3.81mm)
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Board |
| Series | W |
| Features | Board Guide, Polarizing Key |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug |
| Fastening Type | Push-Pull |
| Number of Rows | 3 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 1000V |
| Contact Material | Copper Alloy |
| Insulation Color | Gray |
| Insulation Height | 0.350" (8.89mm) |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Number of Positions | 92 |
| Row Spacing - Mating | 0.125" (3.18mm) |
| Contact Length - Post | 0.140" (3.56mm) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -65°C ~ 125°C |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.150" (3.81mm) |
| Number of Positions Loaded | All |
