Step1: Product

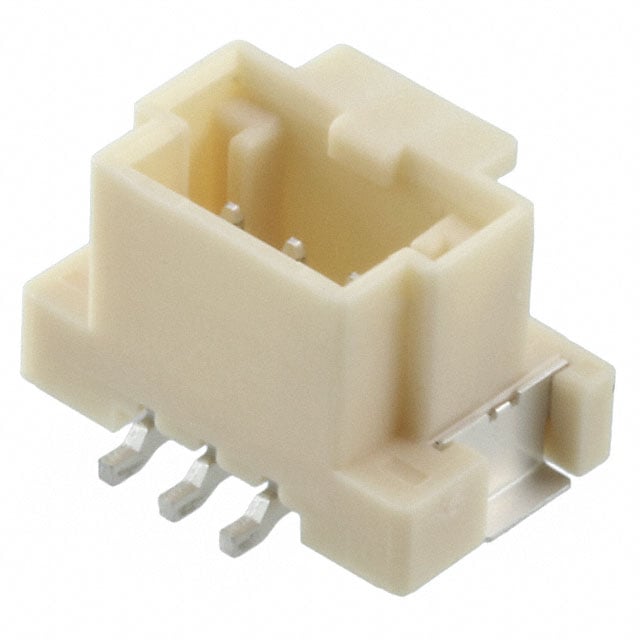

Molex 5600200320
Image shown is a representation only
Manufacturer
Manufacturer No
5600200320
Quantity
1855
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD 3POS 2MM
Detailed Description
Connector Header Surface Mount 3 position 0.079" (2.00mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
DuraClik 560020
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, Industrial
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.315" (8.00mm)
Base Product Number
560020
Insulation Material
Polyamide (PA), Nylon
Number of Positions
3
Contact Finish - Post
Tin
Mated Stacking Heights
9.3mm
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | DuraClik 560020 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.315" (8.00mm) |
| Base Product Number | 560020 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 9.3mm |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
