Step1: Product

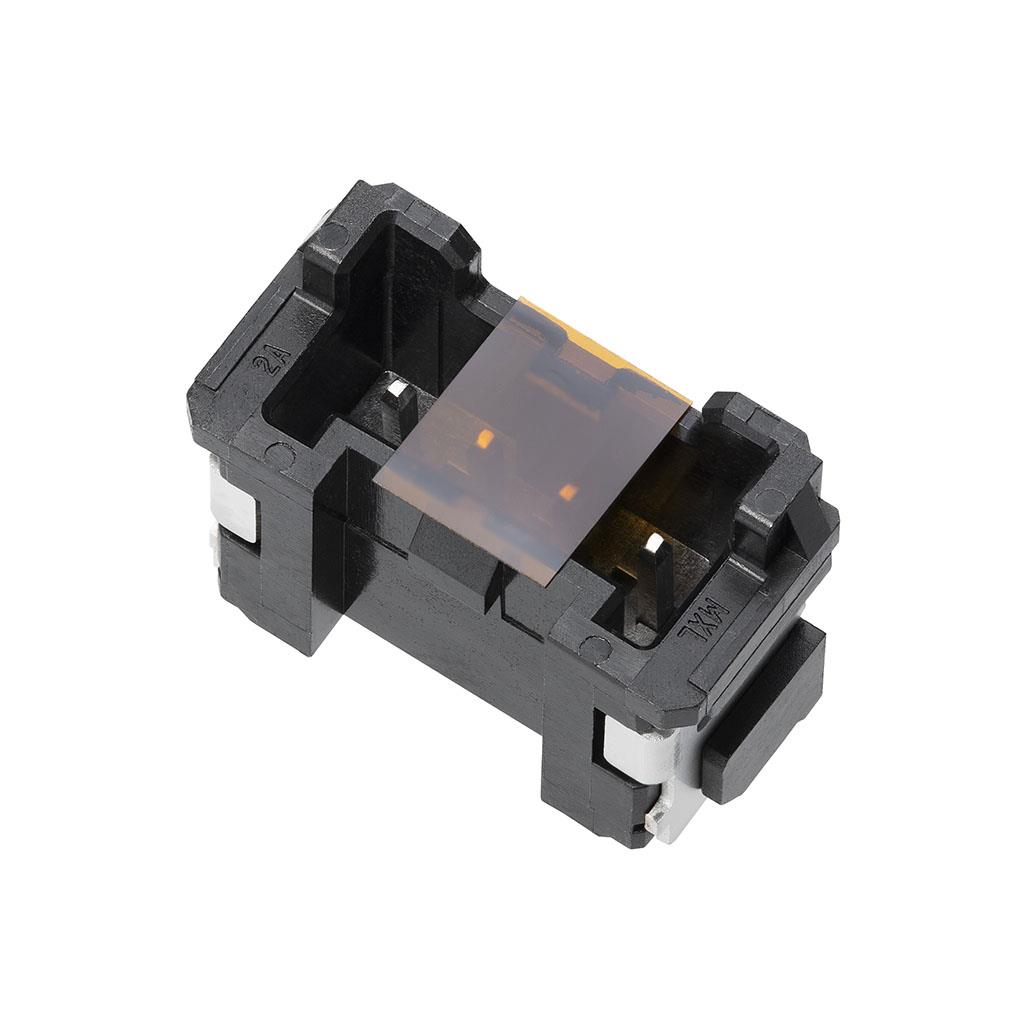

Molex 5055750281
Image shown is a representation only
Manufacturer
Manufacturer No
5055750281
Quantity
4,128
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD 2POS 2MM
Detailed Description
Connector Header Surface Mount 2 position 0.079" (2.00mm)
Datasheet
Mfr
Molex
Style
Board to Cable/Wire
Series
Micro-Lock PLUS 505575
Features
Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250VAC/DC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.339" (8.61mm)
Base Product Number
505575
Insulation Material
Polyamide (PA), Nylon
Number of Positions
2
Contact Finish - Post
Tin
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
11.1mm
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Micro-Lock PLUS 505575 |
| Features | Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.339" (8.61mm) |
| Base Product Number | 505575 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 2 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 11.1mm |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
